| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |
| Model NO.: | Ha | Drill Hole Depth: | <100m |
|---|---|---|---|
| Bit Type: | Button Bit | Drilling Way: | Top Hammer |
| Shank Types: | R38/T38/T45 | Dimensions: | 1093X332X200.5mm |
| Flow Rate: | 150-170 L/Min | Drilling Diameter: | 51-89 Mm |
| Power: | 27kw | Transport Package: | Wooden Boxes |
| Specification: | 1093X332X200.5mm | Trademark: | Elite |
| Origin: | China | HS Code: | 84314320 |
| Supply Ability: | 1000/Month | After-sales Service: | 24h |
| Warranty: | 1 Year | Certification: | CE, ISO 9001:2008 |
| Condition: | New | Motor: | Hydraulic |
| Drill Hole Diameter: | <100mm | Customization: | Available | Customized Request |

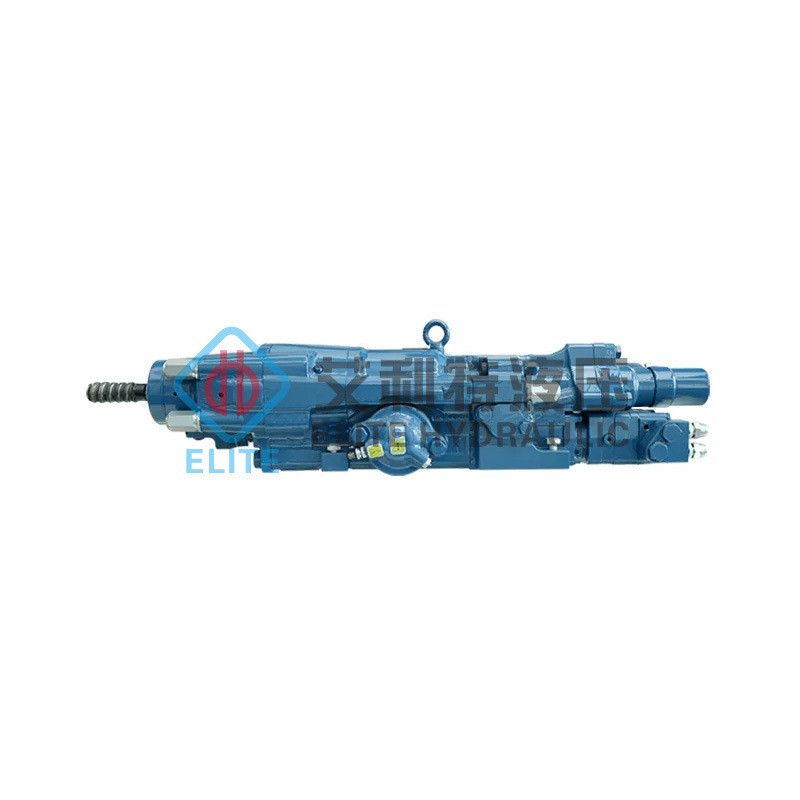

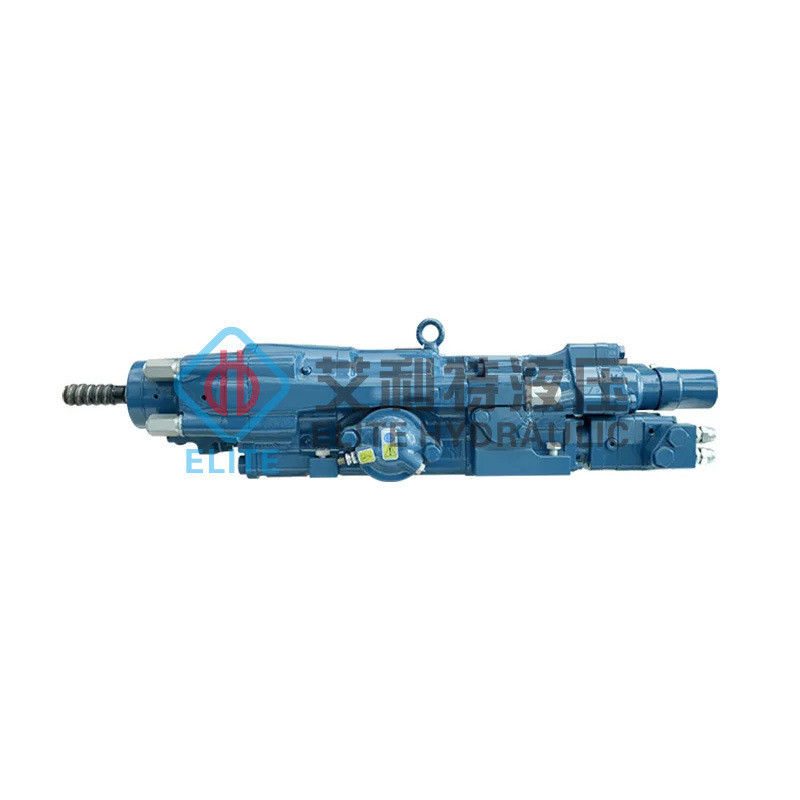

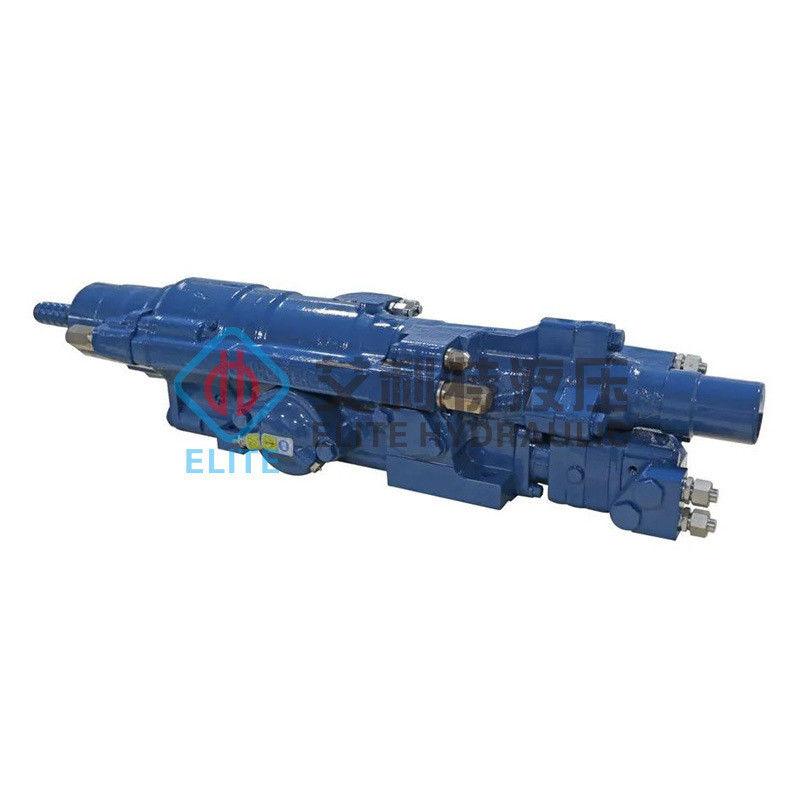

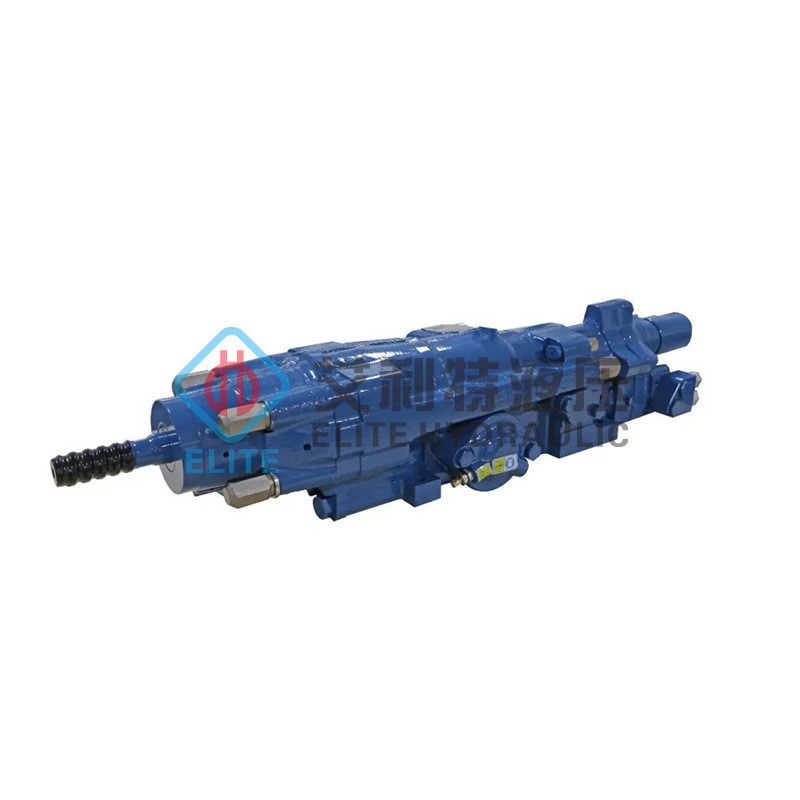

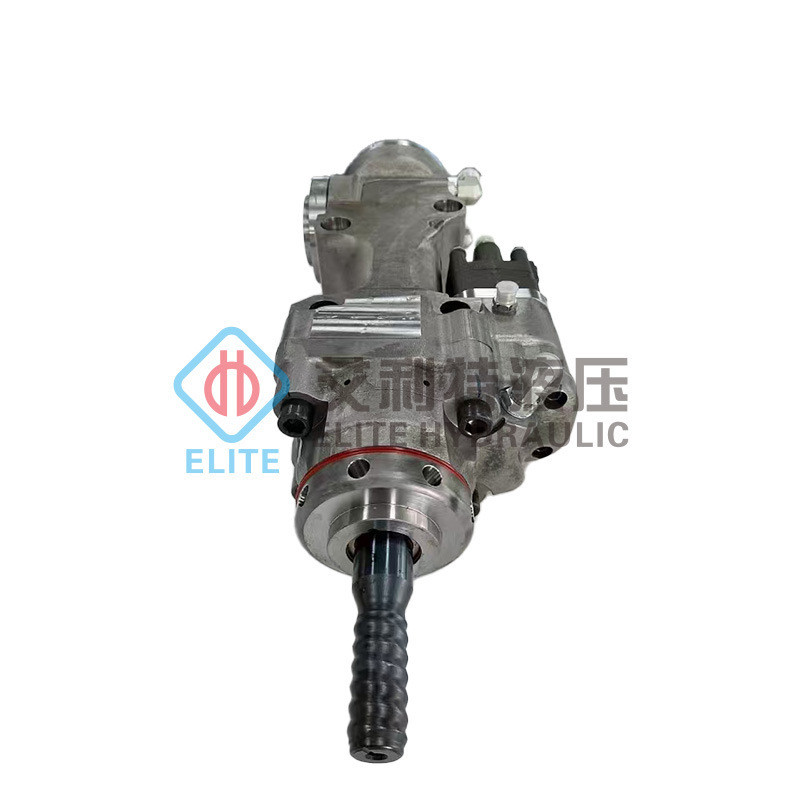

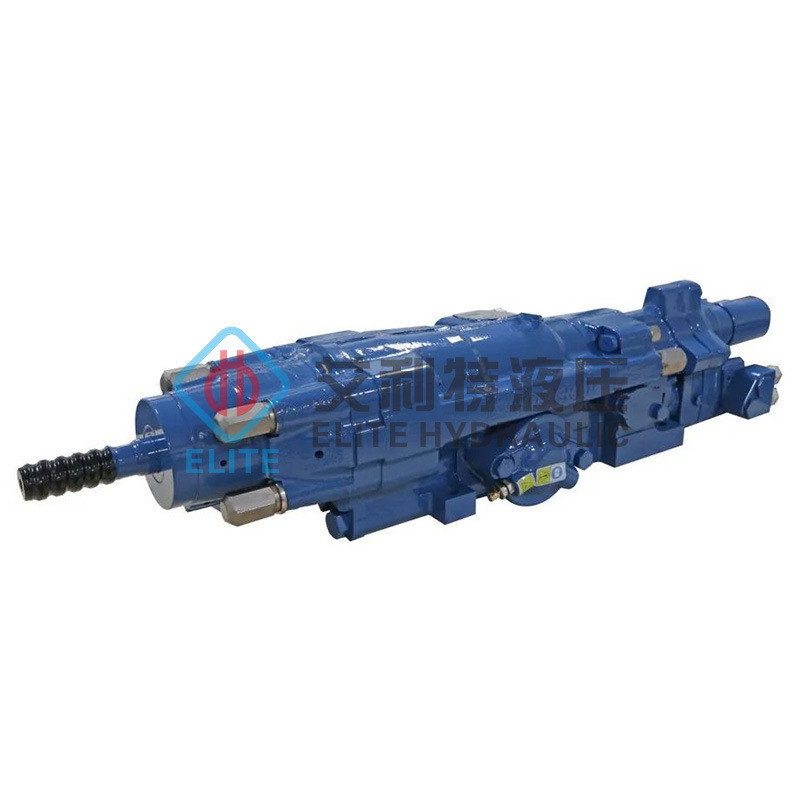

| HM27 Rock Drill | ||
| Structure | ||
| Dimension | mm*mm*mm | 1093X332X200.5 |
| Weight | KG | 215 |
| Center Height | mm | 100.5 |
| Shank | - | R38/T38/T45 |
| Hole Diameter | mm | 51-89 |
| Impact Functions | ||
| Max. Impact Power | KW | 27 |
| Oil Inlet Pressure | Bar | 165-190 |
| Impact Frequency | HZ | 63-72 |
| Flow | L/min | 150-170 |
| Impact Energy | J | 329-380 |
| Rotation Functions | ||
| Displacement | CC | 80/100/160 |
| Rotation Speed | Rpm | 292/269/175 |
| Max. Torque | Nm | 671/838/1342 |
| Oil Inlet Pressure | Bar | 210 |
| Flow | L/min | 65/75/78 |
| Others | ||
| Water Pressure | Bar | 20-30 |
