| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |

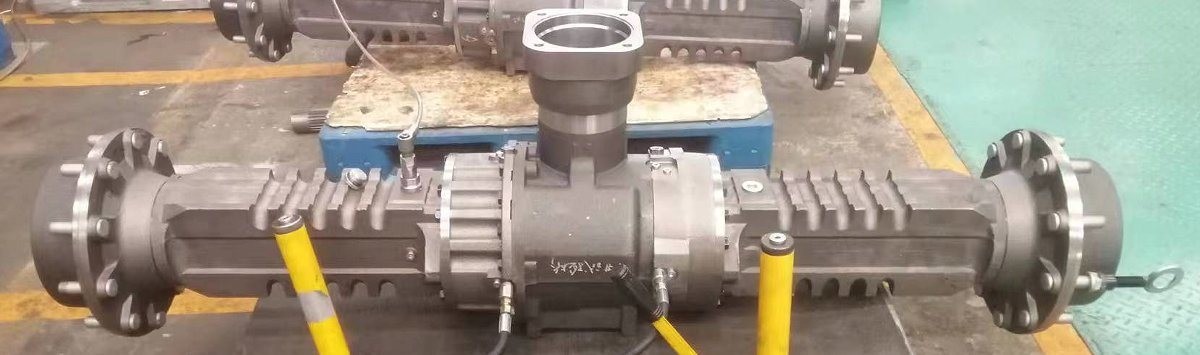

| Model NO.: | HFS211 | Type: | Rear Axles |
|---|---|---|---|
| Brand: | Elite/OEM | Ratios: | Different Ratios |
| Load Capacity: | Higher Load Capacity | Output Torque: | Higher Output Torque |
| Design: | Customized Design | Ground Tooth: | Notchless Ground Tooth Root |
| Warranty: | 12months | Transport Package: | Wooden Boxes |
| Trademark: | Elite | Origin: | China |
| HS Code: | 8483402090 | Supply Ability: | 1000/Month |
| After-sales Service: | 24h | Condition: | New |
| Axle Number: | 1 | Application: | Engineering Equipment & Mining Equipment |
| Certification: | ISO | Material: | Iron |
| Customization: | Available | Customized Request |
| 1 | It adopts a fully enclosed wet multi-disc braking,with hydraulic system for releasing and spring for braking, ensuring reliable braking and a long service life for the brake |
| 2 | Equipped with differential, it allows automatic speed differentiation between two wheels during turning,with smooth vehicle steering |
| 3 | The brake system includes a dedicated pressure oil cooling circuit, offering significant cooling effects and minimal wear on friction plates, suitable for frequent braking environments |
| 4 | lts advanced structural design and reliable quality make it widely applicable in mining machinery and construction machinery, especially suitable for narrow, low, and muddy working surfaces |
| 5 | Our axle parts are completely interchangeable with the American Dana axle211 parts. |
| Parameter | Unit | Value |
| Maximum brake pressure | Mpa | 8 |
| Maximun steering pressure | Mpa | 18.5 |
| Speed ratio of main reducer | I | 29:9 |
| Speed ratio of wheel reducer | I | 4.235:1 |
| Total speed ratio | I | 13.646 |
| Maximum static bearing capacity | N | 100000 |
| Maximum dynamic bearing capacity | N | 60000 |
