| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |

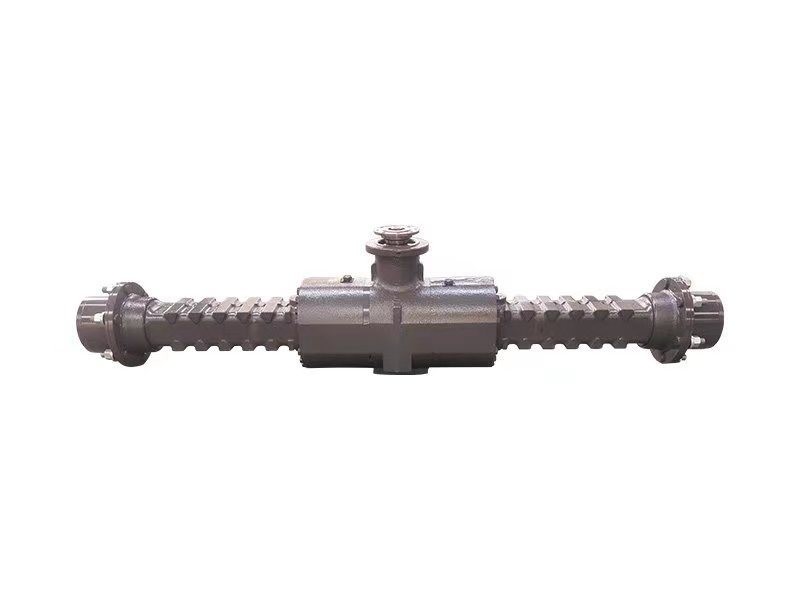

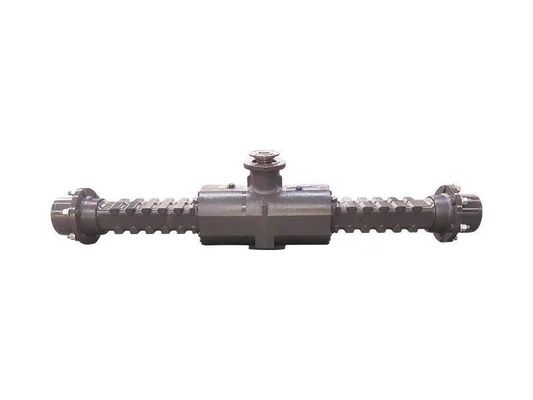

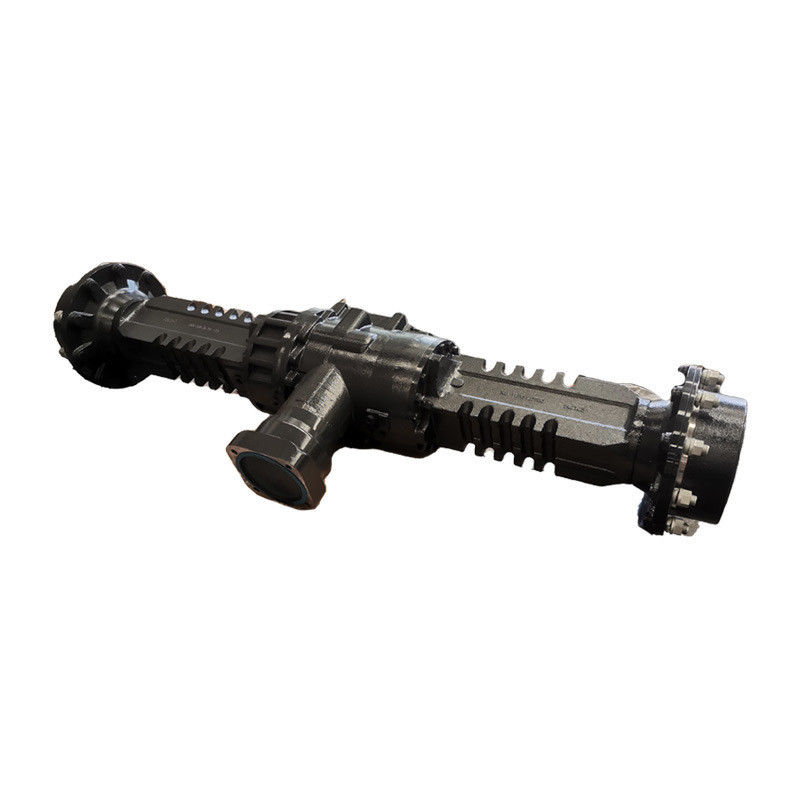

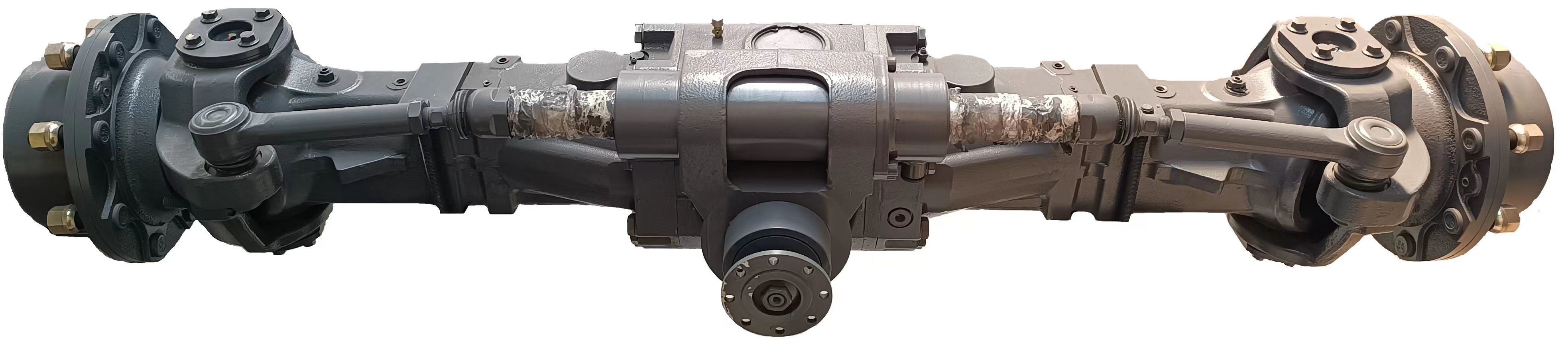

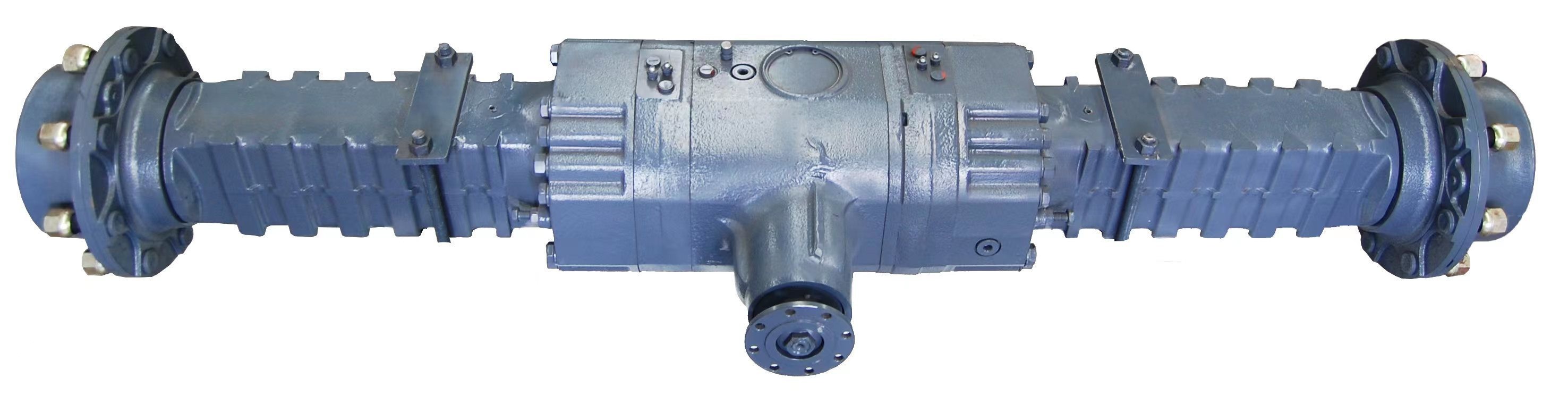

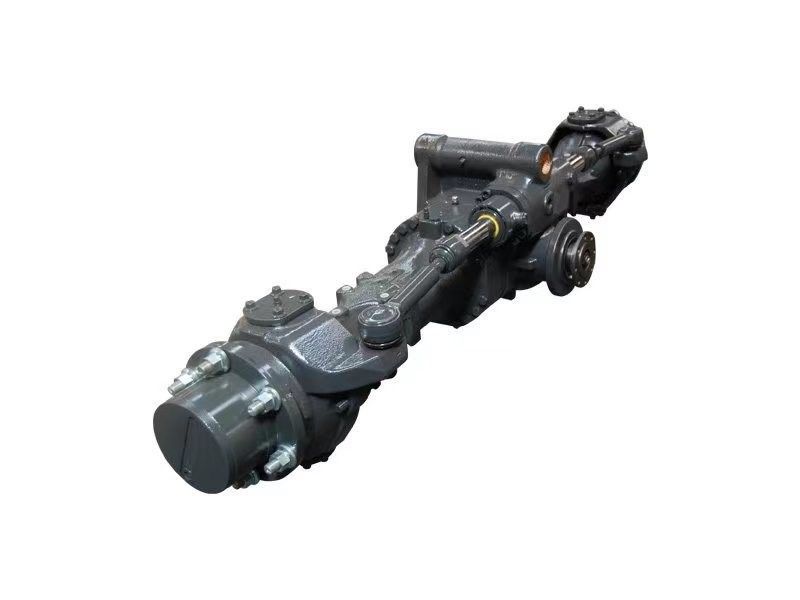

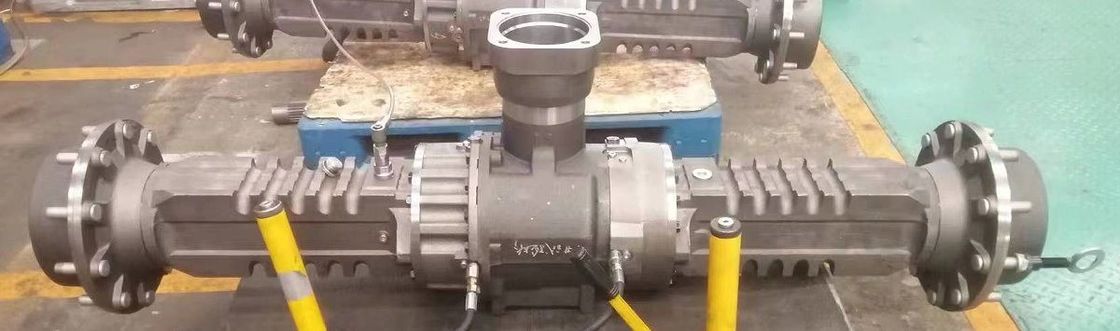

| Model NO.: | HFS212 | Type: | Rear Axles |
|---|---|---|---|
| Brand: | Elite/OEM | Ratios: | Different Ratios |
| Load Capacity: | Higher Load Capacity | Output Torque: | Higher Output Torque |
| Design: | Customized Design | Ground Tooth: | Notchless Ground Tooth Root |
| Warranty: | 12months | Transport Package: | Wooden Boxes |
| Trademark: | Elite | Origin: | China |
| HS Code: | 8483402090 | Supply Ability: | 1000/Month |
| After-sales Service: | 24h | Condition: | New |
| Axle Number: | 1 | Application: | Engineering Equipment & Mining Equipment |
| Certification: | ISO | Material: | Iron |
| Customization: | Available | Customized Request |
| 1 | It adopts a fully enclosed wet multi-disc braking, with hydraulic braking and spring release, ensuring reliable braking and a long service life for the brake |
| 2 | Equipped with differential, it allows automatic speed differentiation between two wheels during turning, with smooth vehicle steering |
| 3 | Equpped with hydraulic steering mechanism, it can ensure the smooth steering that can be controlled easily and flexibly |
| 4 | Its advanced structural design and reliable quality make it widely applicable in mining machinery and construction machinery, especially suitable for narrow, low, and muddy working surfaces |
| 5 | Our axle parts are completely interchangeable with the American Dana axle212 parts. |
| Parameter | Unit | Value |
| Service brake torque | Nm | 21000 |
| Maximum brake pressure | Mpa | 8 |
| Maximum steering pressure | Mpa | 14(heavy load 18) |
| Speed ratio of main reducer | I | 2.286:1 |
| Speed ratio of wheel reducer | I | 6:1 |
| Total speed ratio | I | 13.714 |
| Maximum static bearing capacity | N | 160000 |
| Maximum dynamic bearing capacity | N | 80000 |
| Maximum input torque | N.m | 3800 |
Application
