| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |
| Model NO.: | HFT070T | Warranty: | 18 Months |
|---|---|---|---|
| Output Torque: | Higher Output Torque | Custom: | Customized Design |
| Brand: | Elite/OEM | Ratio: | Different Ratios |
| Brakes: | Multiple Disc Brakes | Load Capacity: | Higher Load Capacity |
| Transport Package: | Wooden Boxes | Trademark: | Elite |
| Origin: | China | HS Code: | 8483402090 |
| Supply Ability: | 2200/Month | Application: | Motor, Motorcycle, Machinery, Agricultural Machinery |
| Function: | Change Drive Torque, Speed Changing, Speed Reduction | Hardness: | Hardened Tooth Surface |
| Installation: | Horizontal Type | Step: | Three-Step |
| Type: | Planetary Gear Box | Customization: | Available | Customized Request |

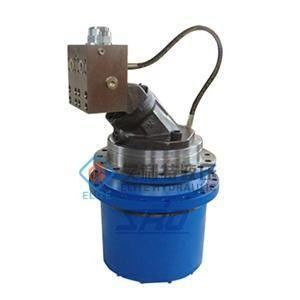

| Model | HFT070T |
| Max. output torque: | 70000 N.m |
| Input speed | up to 4,000 rpm |
| Ratio: | 35,98,120,140,147,196 |
| Brake options | Hydraulically released parking brake on request |
| Dynamic Loading: | 429KN |
| Static Loading: | 815KN |
| Applicable motors: | Cartridge axial piston hydraulic motors Flanged axial piston hydraulic motors Hydraulic orbit motors Electrical motors |
| Application: | Travel for Track, Chain and Wheel driving machines |
