| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |
| Model NO.: | HFT130T3B059 | Custom: | Customized Design |
|---|---|---|---|
| Brand: | Elite/OEM | Ratio: | Different Ratios |
| Brakes: | Multiple Disc Brakes | Load Capacity: | Higher Load Capacity |
| Assembly: | Easy Assembly | Transport Package: | Wooden Boxes |
| Trademark: | Elite | Origin: | China |
| HS Code: | 8483402090 | Supply Ability: | 200/Month |
| Application: | Motor, Motorcycle, Machinery, Agricultural Machinery | Function: | Change Drive Torque, Speed Changing, Speed Reduction |
| Hardness: | Hardened Tooth Surface | Step: | Double-Step |
| Type: | Planetary Gear Box | Output Torque: | Higher Output Torque |
| Customization: | Available | Customized Request |

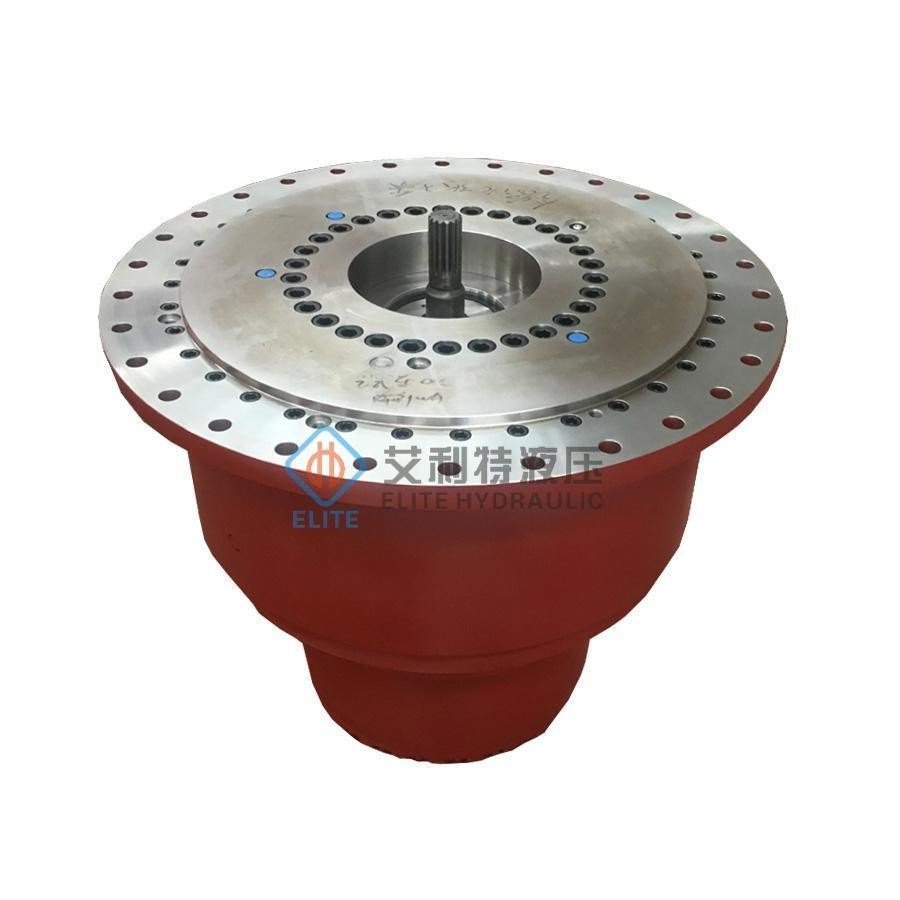

| Model | HFT130T |
| Max. output torque: | 130000 NM |
| Rated. output torque: | 76000NM |
| Input speed | up to 3,600 rpm |
| Ratio: | 35 |
| Static Brake Torque | ≥80000NM ;Spring brake, multi-disc service brakes |
| Dynamic Loading: | 688KN |
| Static Loading: | 1520KN |
| Applicable motors: | Cartridge axial piston hydraulic motors Flanged axial piston hydraulic motors Hydraulic orbit motors Electrical motors |

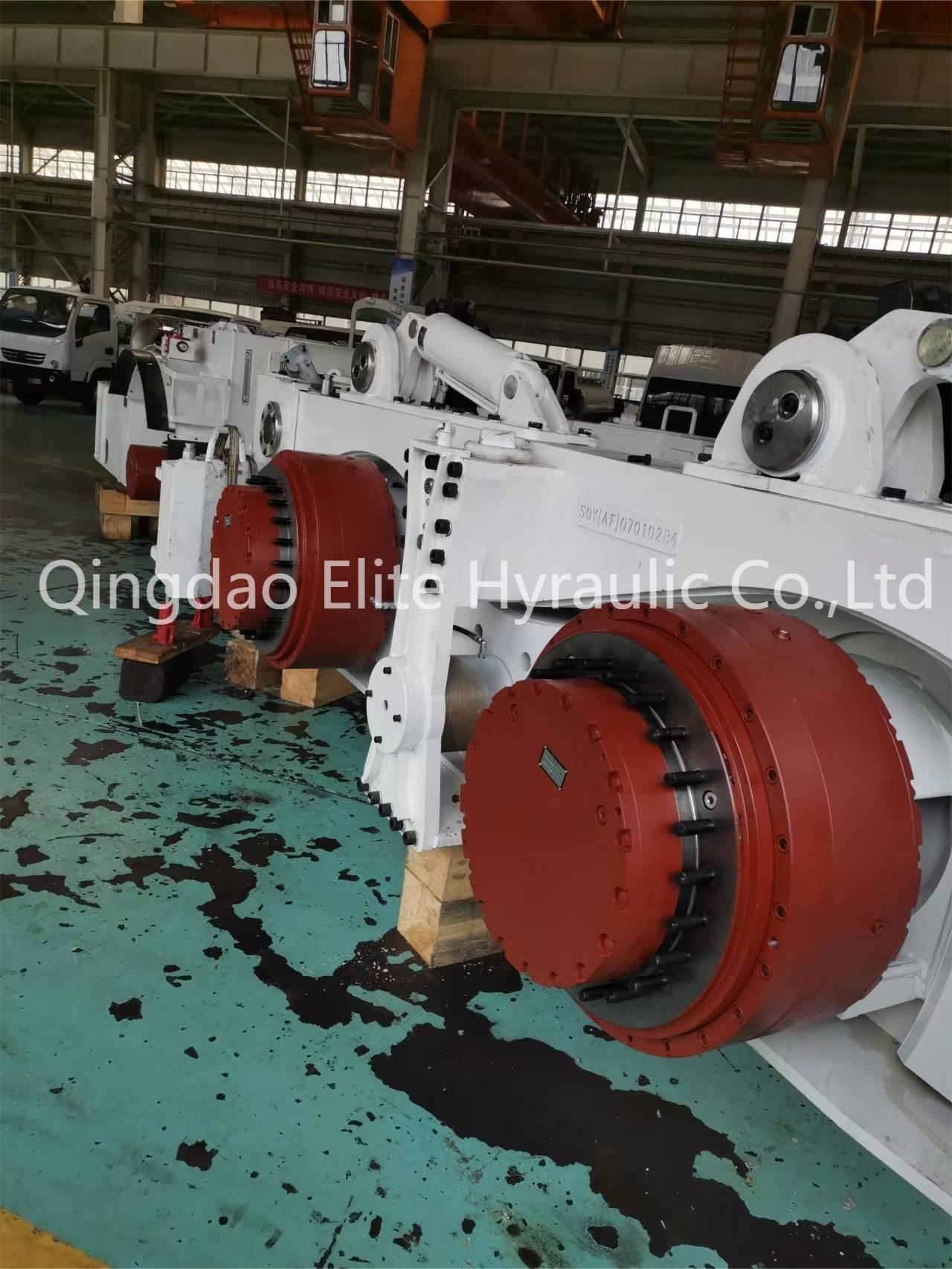

| Application: | Travel for Track, Chain and Wheel driving machines ; for example bulldozer,Crawler excavator,Bracket Truck |
