| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |
| Model NO.: | HFZ | Warranty: | 18 Months |
|---|---|---|---|
| Output Torque: | Higher Output Torque | Custom: | Customized Design |
| Brand: | Elite/OEM | Assembly: | Easy Assembly |
| Ground Tooth: | Notchless Ground Tooth Root | Load Capacity: | Higher Load Capacity |
| Delivery: | Fast Delivery | Transport Package: | Wooden Boxes |
| Trademark: | Elite | Origin: | China |
| HS Code: | 8483402090 | Supply Ability: | 100/Month |
| Application: | Motor, Motorcycle, Machinery, Agricultural Machinery | Function: | Change Drive Torque, Speed Changing, Speed Reduction |
| Hardness: | Hardened Tooth Surface | Step: | Double-Step |

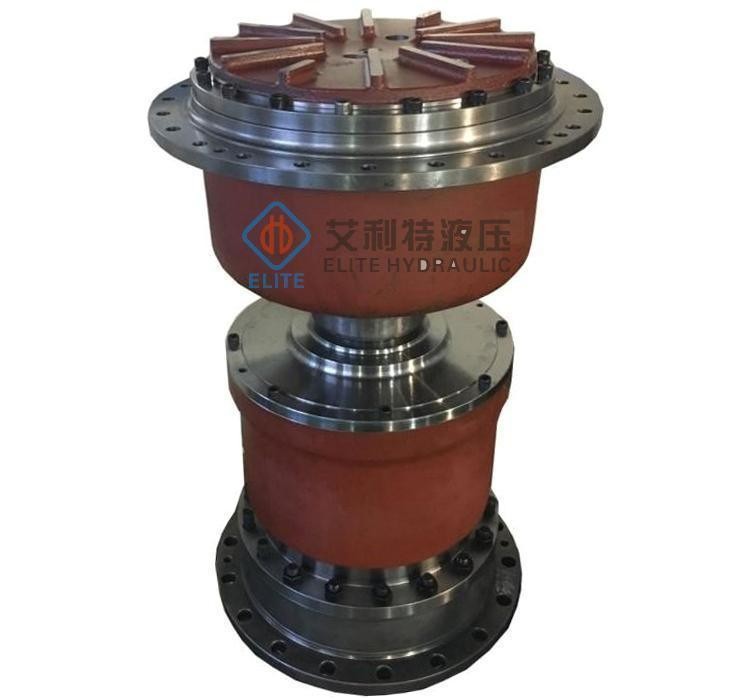

| Type: | Planetary Gear Box | Input Speed: | 4000rpm |
| Customization: | Available | Customized Request |
| 1 | Materials | All torque-bearing gearbox components are made of top-quality casehardened and tempered steels. |
| 2 | Gearbox structure | All sun gears and planet wheels are case-hardened and ground. The ring gears are made of high-strength tempered steel, which is also used for the forged planetary supports. Well thought-out construction principles ensure an even load distribution of the individual stages and therefore a high performance density. In addition, the gearboxes are characterised by an integral design optimised to reduce the number of components to a minimum, thereby also minimising the number of sealing points. |
| 3 | Bearings | All rotation parts run on rotation element bearings .Ball bearings are used to support the input gearing,cylindrical Roller Bearings for the planet wheels and tapered Roller Bearings are used on the output gearing . |
| 4 | Seals | Travel drives and winch drives use floating oil seals, slewing drives use rotating glyd ring seals. |
