| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |
| Model NO.: | HFW | Layout: | Shunting |
|---|---|---|---|
| Gear Shape: | Cylindrical Gear | Step: | Four-Step |
| Type: | Planetary Gear Reducer | Output Torque: | Higher Output Torque |
| Custom: | Customized Design | Brand: | Elite/OEM |
| Ratio: | Different Ratios | Brakes: | Multiple Disc Brakes |
| Load Capacity: | Higher Load Capacity | Delivery: | Fast Delivery |
| Ground Tooth: | Notchless Ground Tooth Root | Design: | Robust And Modular Design |
| Assembly: | Easy Assembly | Hydraulic Motor: | Optional |
| Transport Package: | Wooden Boxes | Trademark: | Elite |
| Origin: | China | HS Code: | 8483402090 |
| Supply Ability: | 2200/Month | Package Size: | 80.00cm * 80.00cm * 100.00cm |
| Package Gross Weight: | 50.000kg | Application: | Motor, Electric Cars, Motorcycle, Machinery, Marine, Agricultural Machinery |
| Hardness: | Soft Tooth Surface | Installation: | Vertical Type |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

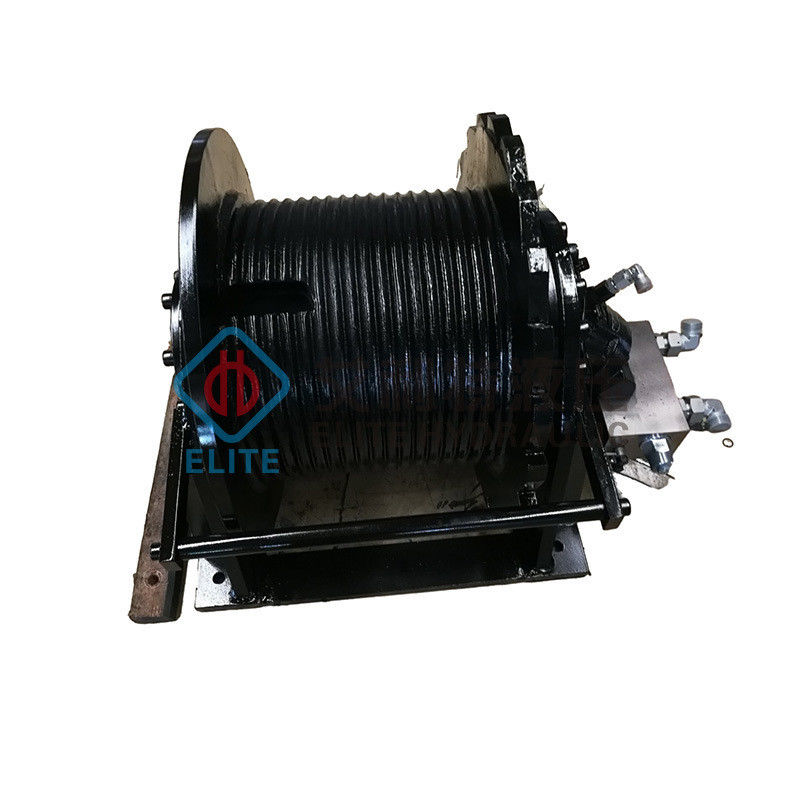

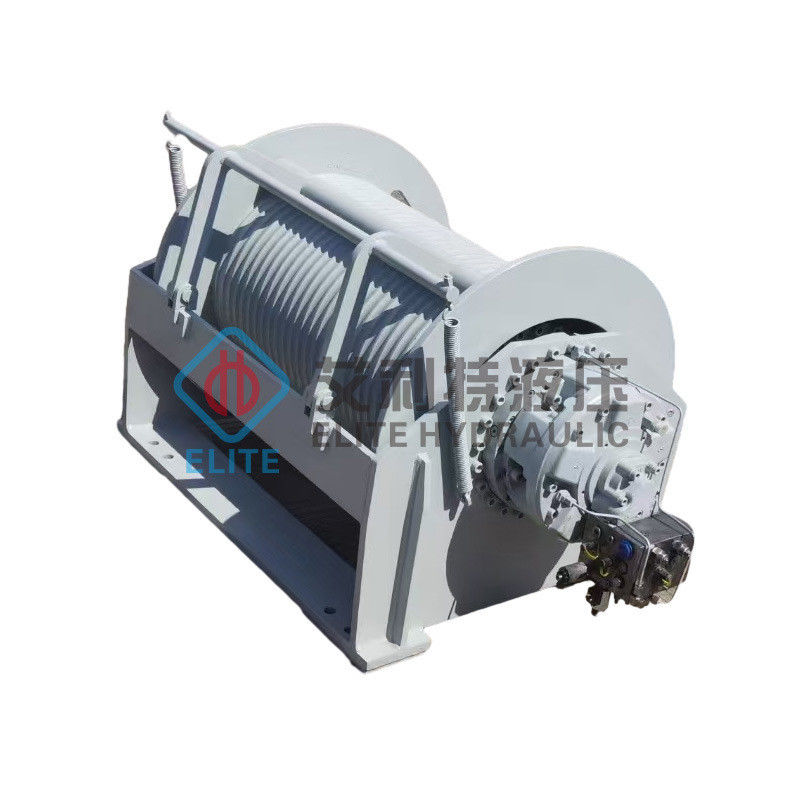

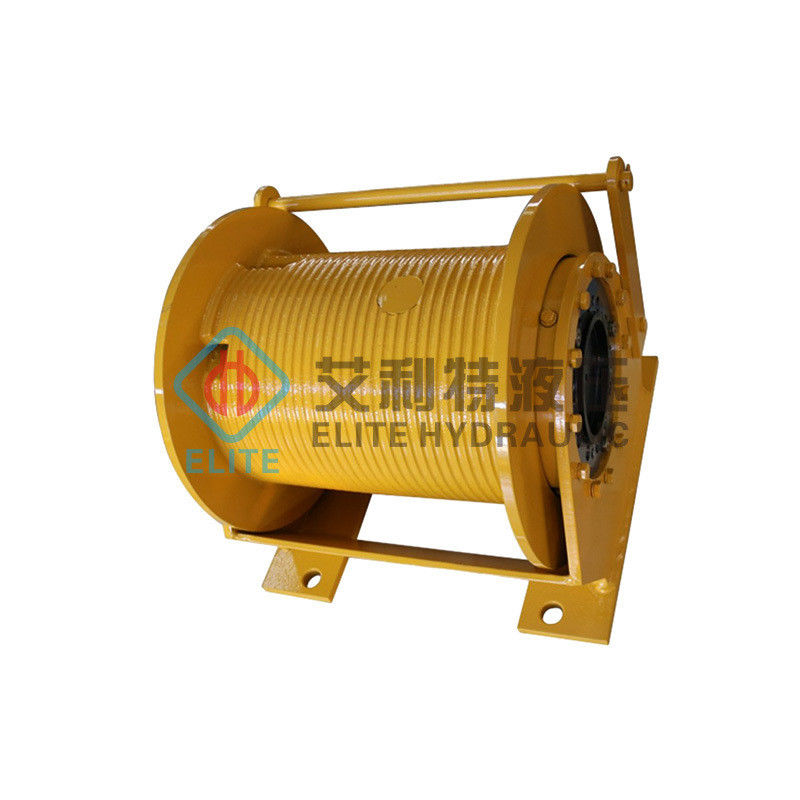

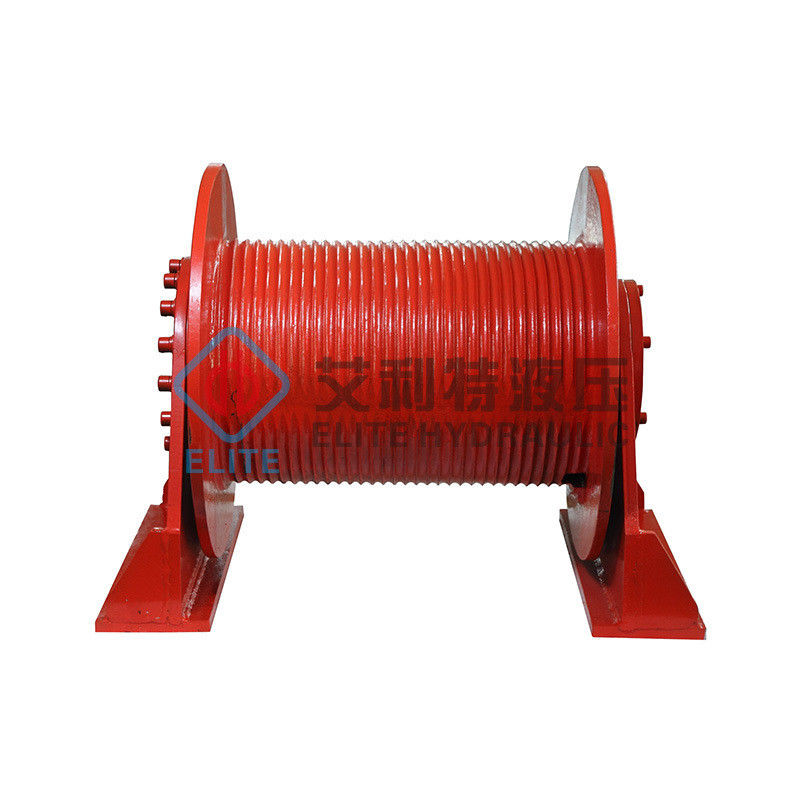

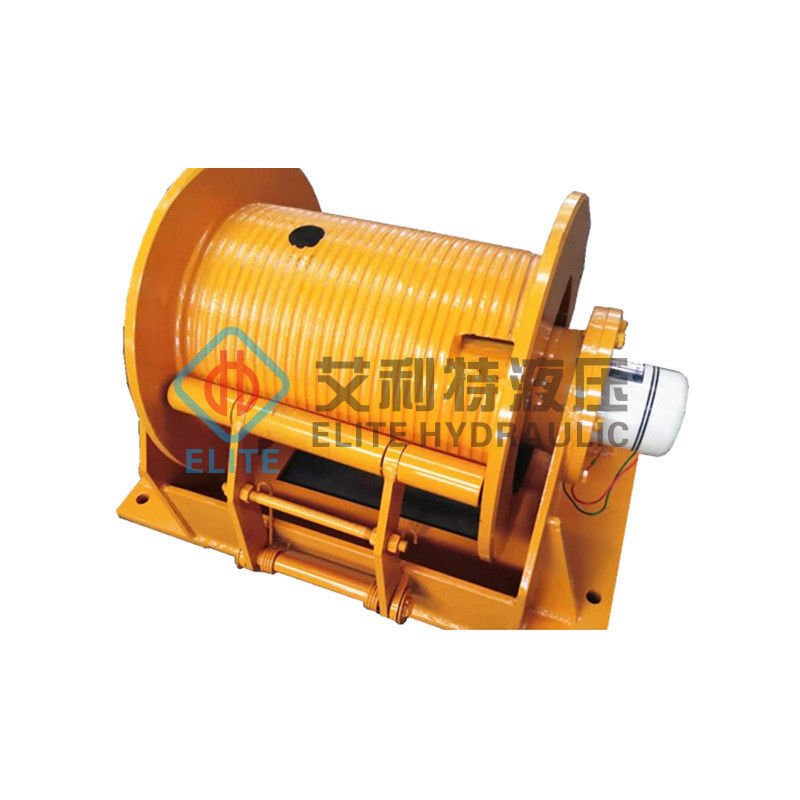

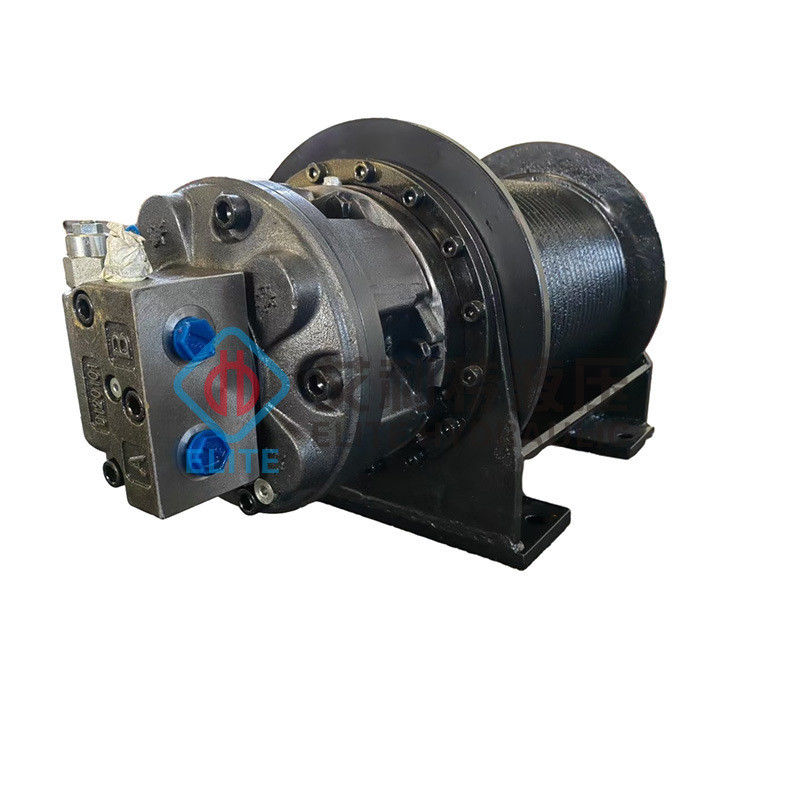

Planetary winch gearboxes of the HFW series are composed of 18 finely spaced frame sizes. The compact design allows the gearbox to be integrated into the winch drum. The failsafe brake can be integrated inside the gearbox or mounted externally, with common lubrication for the gears. Electrically driven versions are available with both in-line and right-angle configurations. Torque ratings are organized by FEM class, in accordance with minimum approved class safety factors for gears.
Features:
Compact structure and space-saving design
Robust main bearing system
High torque capacity
High load capacity
Integrated static multiple disk parking brake
Optional Disconnect device for towing
Optional Quick disconnection device
Simple mounting
Easy oil change
Low-noise running operation
Class approval program
ATEX conformity on demand
Torque ratings are organized by FEM class
The failsafe brake can be integrated inside the gearbox or mounted externally, with common lubrication for the gears
| 1 | Materials | All torque-bearing gearbox components are made of top-quality casehardened and tempered steels. |
| 2 | Gearbox structure | All sun gears and planet wheels are case-hardened and ground. The ring gears are made of high-strength tempered steel, which is also used for the forged planetary supports. Well thought-out construction principles ensure an even load distribution of the individual stages and therefore a high performance density. In addition, the gearboxes are characterised by an integral design optimised to reduce the number of components to a minimum, thereby also minimising the number of sealing points. |
| 3 | Bearings | All rotation parts run on rotation element bearings .Ball bearings are used to support the input gearing,cylindrical Roller Bearings for the planet wheels and tapered Roller Bearings are used on the output gearing . |
| 4 | Seals | Travel drives and winch drives use floating oil seals, slewing drives use rotating glyd ring seals. |
