Detail Information

Model NO.:	HYT050	Custom:	Customized Design
Brand:	Elite/OEM	Ratio:	Different Ratios
Brakes:	Multiple Disc Brakes	Load Capacity:	Higher Load Capacity
Transport Package:	Wooden Boxes	Trademark:	Elite
Origin:	China	HS Code:	8483402090
Supply Ability:	1000/Month	Application:	Motor, Motorcycle, Machinery, Agricultural Machinery
Function:	Change Drive Torque, Speed Changing, Speed Reduction	Hardness:	Hardened Tooth Surface
Step:	Three-Step	Type:	Planetary Gear Box
Output Torque:	Higher Output Torque	Customization:	Available \| Customized Request

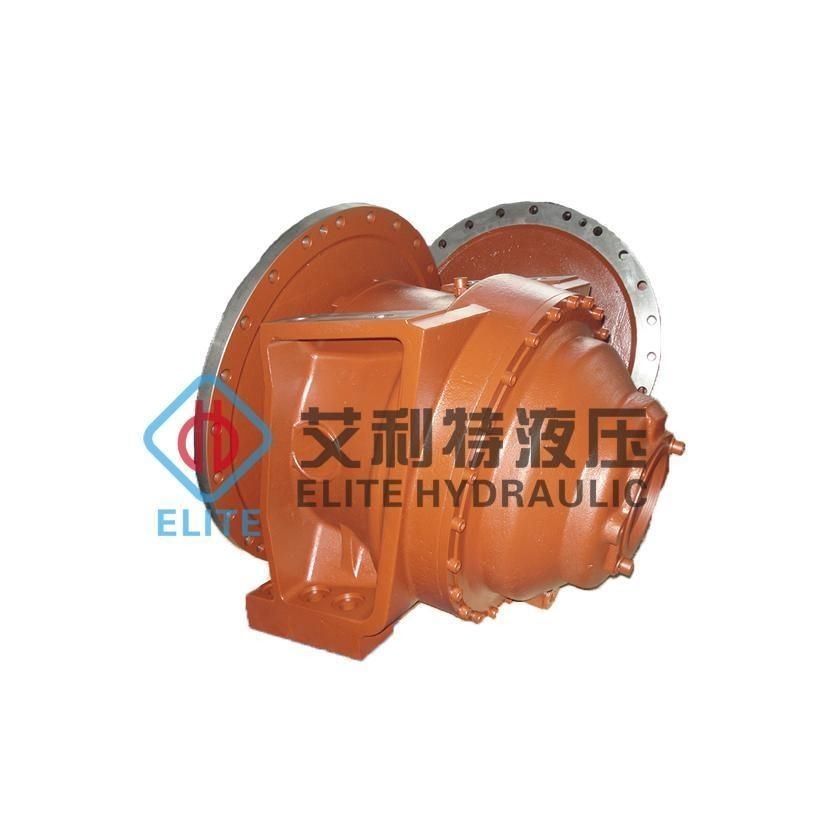

Product Description

Absolute dependability, low maintenance, compactness and cost-effectiveness are the key features of the redesigned HYT series, the unparalleled line of drives for transit mixers. Ten models available for mixing capacity ranging from 1 to 20 m3.

Features:
Compact structure and space-saving design
Robust main bearing system
High torque capacity
High load capacity
Integrated static multiple disk parking brake
Optional Disconnect device for towing
Optional Quick disconnection device
Simple mounting
Easy oil change
Low-noise running operation
Specifications:

Model	HYT050D
Max. output torque:	50000 N.m
Input speed	up to 4,000 rpm
Ratio:	134
Applicable motors:	Cartridge axial piston hydraulic motors Flanged axial piston hydraulic motors Electrical motors
Application:	8 Cub concrete mixer truck

In conclusion, ELITE Hydraulic offers quality, value, and professional power transmission solutions that cater to a wide variety of industries. With their expertise, experience, and commitment to customer satisfaction, you can be sure that you're in safe hands when working with them. Whether you need travel gearbox, electrical drive, travel drive,slew gearbox,winche gearbox,cutter gearbox,truck mixer gearbox,twin shaft mixer or other hydraulic transmission solutions, you can trust ELITE Hydraulic to provide you with the best possible solutions. Contact them today to learn more about their power transmission products and services.
