| Model NO.: | HFT | Layout: | Coaxial |
|---|---|---|---|
| Gear Shape: | Cylindrical Gear | Step: | Three-Step |
| Type: | Planetary Gear Reducer | Output Torque: | Higher Output Torque |
| Custom: | Customized Design | Brand: | Elite/OEM |
| Ratio: | Different Ratios | Brakes: | Multiple Disc Brakes |
| Load Capacity: | Higher Load Capacity | Assembly: | Easy Assembly |
| Design: | Robust And Modular Design | Ground Tooth: | Notchless Ground Tooth Root |
| Transport Package: | Wooden Boxes | Trademark: | Elite |
| Origin: | China | HS Code: | 8483402090 |
| Supply Ability: | 2200/Month | Package Size: | 80.00cm * 80.00cm * 100.00cm |
| Package Gross Weight: | 800.000kg | Application: | Motor, Electric Cars, Motorcycle, Machinery, Agricultural Machinery |
| Hardness: | Soft Tooth Surface | Installation: | 90 Degree |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |

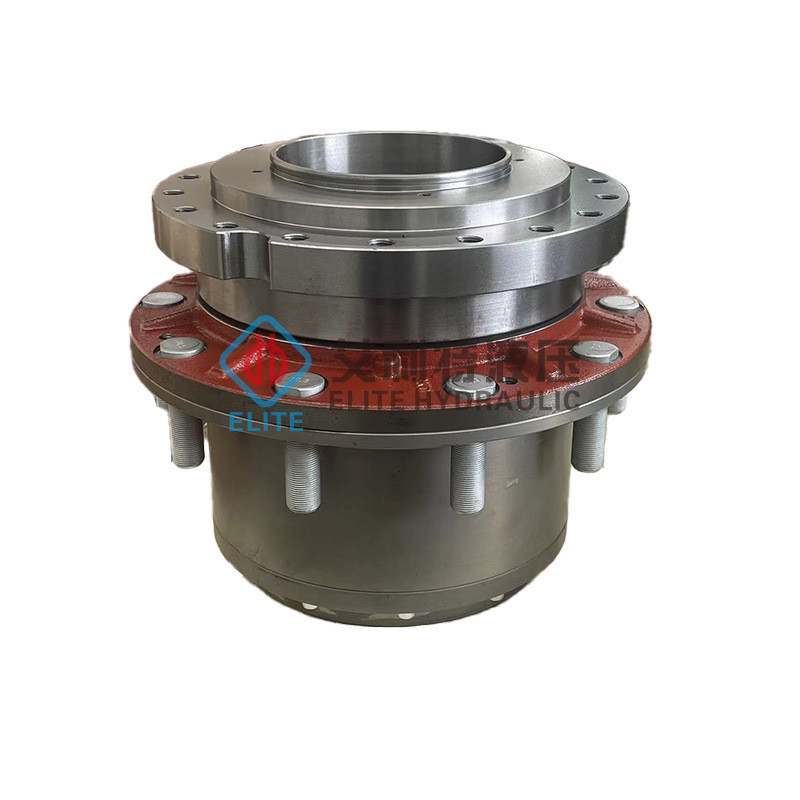

| Model | HFT007T2B |
| Max. output torque: | 7000 N.m |
| Rated output torque: | 3500 N.m |
| Input speed | up to 4,000 rpm |
| Ratio: | 18, 25, 32, 38, 48, 55,57 |
| Brake options | Hydraulically released parking brake on request |
| Dynamic Loading: | 132KN |
| Static Loading: | 277 KN |
| Applicable motors: | Cartridge axial piston hydraulic motors Flanged axial piston hydraulic motors Hydraulic orbit motors Electrical motors KC38/45,LC25) |
| Application: | Travel for Track, Chain and Wheel driving machines |
In conclusion, ELITE Hydraulic offers quality, value, and professional power transmission solutions that cater to a wide variety of industries. With their expertise, experience, and commitment to customer satisfaction, you can be sure that you're in safe hands when working with them. Whether you need travel gearbox, electrical drive, travel drive,slew gearbox,winche gearbox,cutter gearbox,truck mixer gearbox,twin shaft mixer or other hydraulic transmission solutions, you can trust ELITE Hydraulic to provide you with the best possible solutions. Contact them today to learn more about their power transmission products and services.
