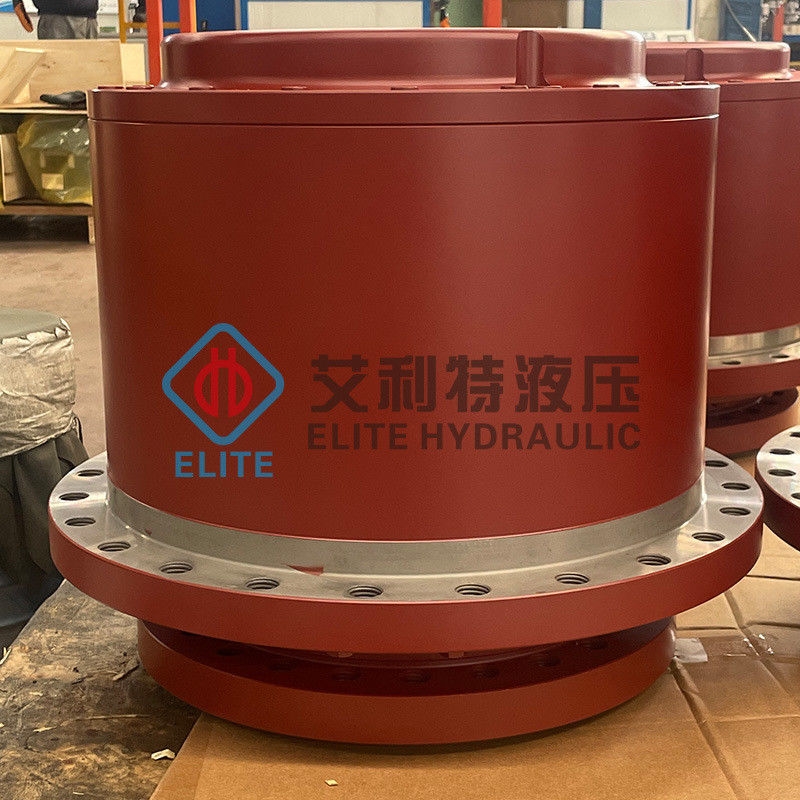

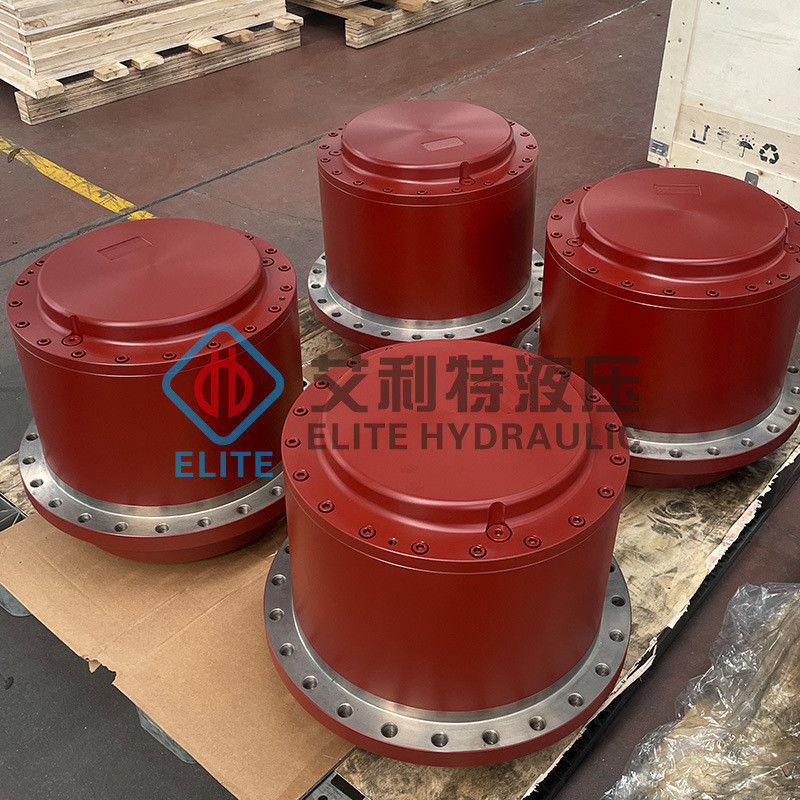

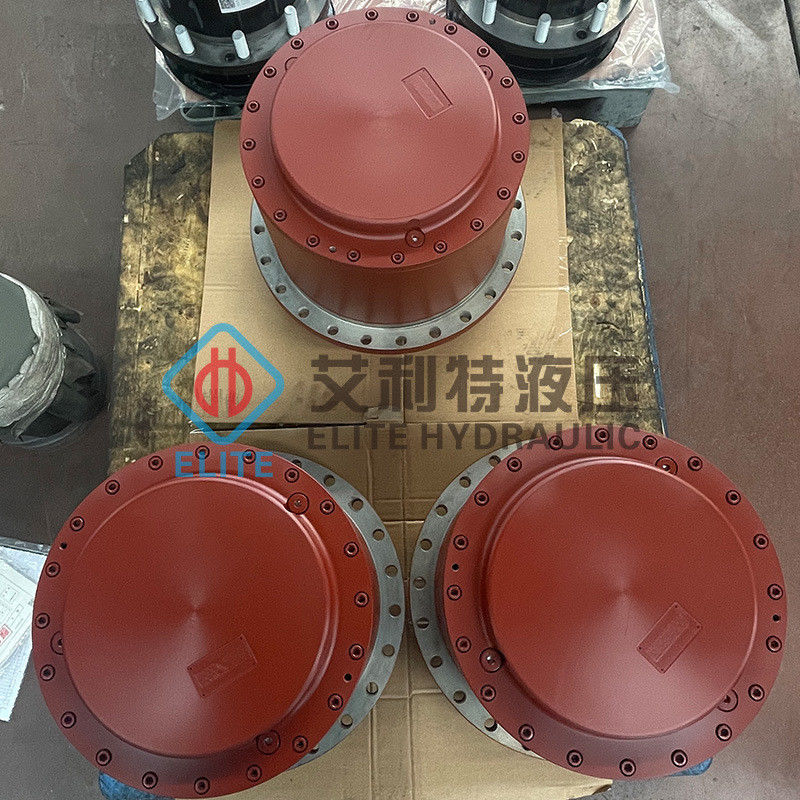

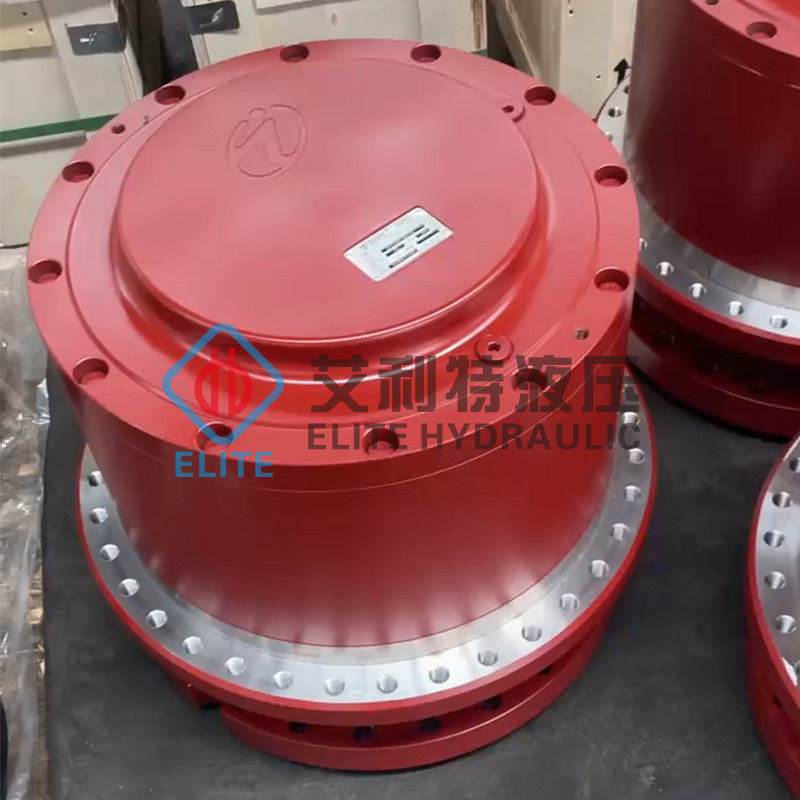

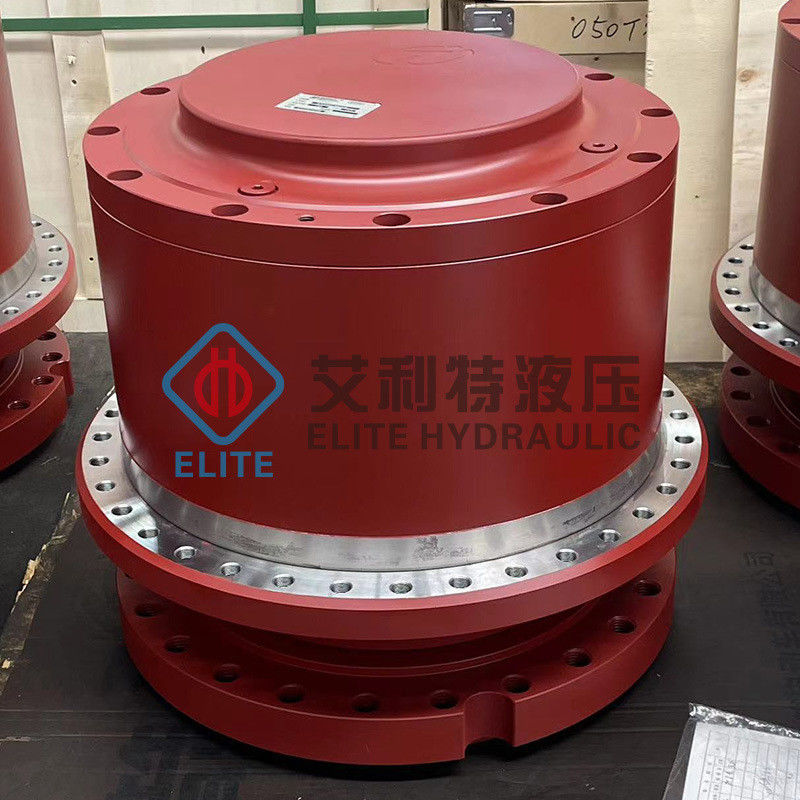

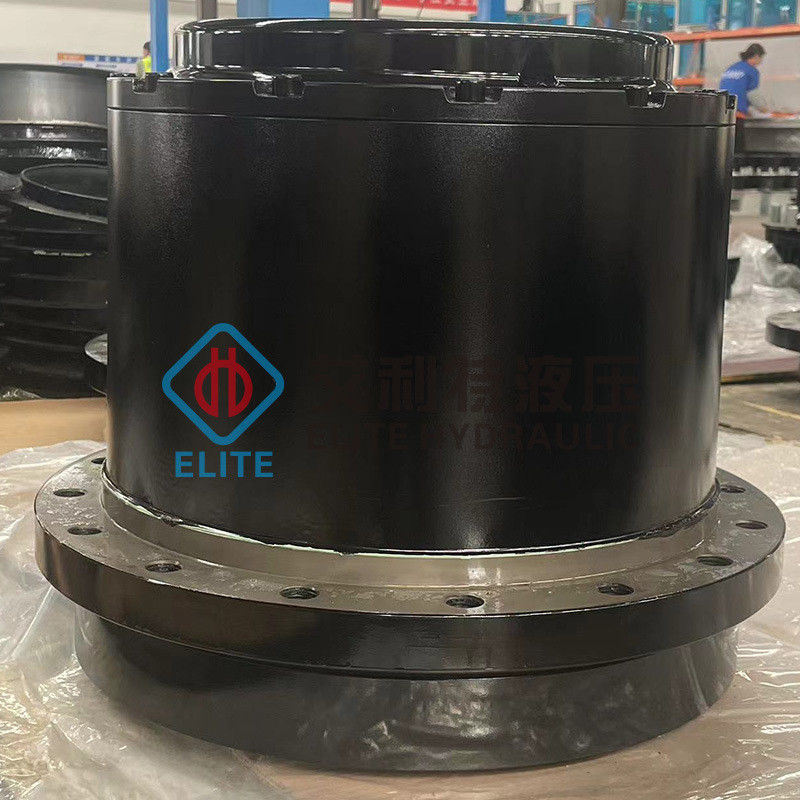

| Model NO.: | HFT | Type: | Planetary Gear Reducer |
|---|---|---|---|
| Load Capacity: | Higher Load Capacity | Output Torque: | Higher Output Torque |
| Custom: | Customized Design | Ratio: | Different Ratios |
| Assembly: | Easy Assembly | Design: | Robust And Modular Design |
| Delivery: | Fast Delivery | Brakes: | Multiple Disc Brakes |
| Transport Package: | Wood | Trademark: | Elite |
| Origin: | China | HS Code: | 8483402090 |
| Supply Ability: | 2200/Month | Application: | Motor, Electric Cars, Motorcycle, Machinery, Agricultural Machinery |
| Hardness: | Hardened Tooth Surface | Installation: | Horizontal Type |
| Layout: | Expansion | Gear Shape: | Conical - Cylindrical Gear |
| Step: | Three-Step | Customization: | Available | Customized Request |
| MODEL | MAX OUTPUT TORQUE | RANGE OF RATIO | MAX.INPUT SPEED | ORBITAL HYD. MOTOR | HYDRAULIC PISTON MOTOR | OIL QUANTITY | WEIGHT | INTERCHANGEABLE MODEL |
| Nm | 1: | rpm | L | kg | ||||
| HFT003 | 3000 | 6,8 | 4000 | √ | √ | 1-1.3 | 35-55 | Bonfiglioli601R1 Bonfiglioli 702C RR RRWD200 RR RRWD270 RR RRWD300 RR RRTD300 RR RRTD100 |
| HFT005 | 5000 | 5-55 | 4000 | √ | √ | 1-1.3 | 50 | BrevIni CTD2050 RR RML793 Bonfiglioli 603W Bonfiglioli 703C Omni VB04 RR RRWD500D |
| HFT007 | 7000 | 11-57 | 4000 | √ | √ | 1.1 | 50 | PMP PMR 680 Rexroth 8105E RRWD600D Brevini 402 Omni VB07 Fairfield 7HP Bonfiglioli 603W AuburnGear Model 70CD |
| HFT010 | 10000 | 25-63 | 4000 | √ | √ | 1.5 | 56-63 | O&K F10 Brevini CTD2010 Bonfiglioli 605W Bonfiglioli 705C RR RRWD800D RR RRT800D RR RRTD1000D Rexroth 8110E PMP PMR 780 Comer PGR-802T |
| HFT011 | 13000 | 26-59 | 4000 | √ | 2 | 80 | Fairfield 11HP Omni VB11 Rexroth 8120E 0&K F13 PMP PMR 1100 PMP PMR 1200 AuburnGear Model 110CD | |
| HFT017 | 17000 | 26-141 | 4000 | √ | 2.5 | 90 | Rexroth GFT17 Bonfiglioli 706C Brevini CTU3150 Brevini 703 RR RRWD1700D Omni VB18 0&K F20 RR RRTD1700T Fairfield CW18 Fairfield CW12 Comer PGR-1702/3T Comer PGR-1702/3W AuburnGear Model 161CD AuburnGear Model 160CD | |
| HFT020 | 20000 | 27-51 | 4000 | √ | 2.5-3 | 105 | Rexroth GFT17 Bonfiglioli 706C Brevini CTU3150 Brevini 703 RR RRWD1700D RR RRTD1701T Omni VB18 Rexroth 8130 PMP PMR 2000 PMP PMC 2000 | |
| HFT024 | 24000 | 44-170 | 4000 | √ | 2.5-3 | 105-120 | Rexroth GFT24 Bonfiglioli 707C Brevini CTU3200 Brevini 703 Omni VB18 RR RRTD2400T Comer PGR-2502/3T Comer PGR-2502/3W 0&K F30 | |
| HFT026 | 26000 | 26-62 | 4000 | √ | 3.5-4 | 140 | Rexroth GFT26 Fairfield CT26 | |
| HFT030 | 30000 | 23-42 | 4000 | √ | 5 | 120 | Rexroth 8144E | |
| HFT034 | 34000 | 51 | 4000 | √ | 5 | 140 | Rexroth GFT34 | |
| HFT036 | 36000 | 12-173 | 4000 | √ | 5 | 140-170 | Rexroth GFT36 Bonfiglioli 709C Bonfiglioli 710C 0&K F40 RR RRTD3600T PMP PMC 3000 Fairfield CR31 Brevini CTU3300 Comer PGR-3602/3T Comer PGR-3602/3W Rexroth GFT8145F |
| 1 | Structural features | Combined with the principle of 2K-H, it adopts 1-stage, 2-stage or multi-stage combined cantilever structure, which is compact in structure, strong bearings can support part of the external weight, easy to install and easy to use. |
| 2 | Key features | Two- or three-stage planetary drive with reduction ratios of up to 1:153 Optimized gear design for maximum efficiency and minimum noise Integrated, low voltage, 3 phase induction motor with inverter Integrated, high accuracy, KTY temperature sensor High resolution, Hall effect speed sensor |
| 3 | seal | Adopting an internationally advanced dynamic sealing structure, it can prevent lubricating oil from leaking out and the entry of external substances and moisture even under extreme use conditions |
| 4 | Lubrication | This series of products is supplied without lubricating oil. When users use it, they need to add lubricating oil to the specified oil level. The gears and bearings are lubricated with oil. In addition to regular oil changes, the reducer does not require Maintenance. Change the oil for the first time after the reducer is used for 150 hours for the first time. After that, change the lubricating oil every 1000 hours. Change the lubricating oil at least once a year. When changing the lubricating oil, you must Keep it clean and do not allow impurities to be mixed in. It is recommended to use L-CKD 220 (40') closed industrial gear oil |
| 5 | design variations | The models listed are standard series products, special designs can be provided according to user needs |
| 6 | Ambient operating temperature | -40C to +90C. Under special circumstances, you need to communicate with our technical staff |
