Detail Information

Model NO.:	HFT130D2	Input Speed:	4000rpm
Warranty:	18months	Output Torque:	Higher Output Torque
Custom:	Customized Design	Design:	Robust And Modular Design
Ground Tooth:	Notchless Ground Tooth Root	Delivery:	Fast Delivery
Load Capacity:	Higher Load Capacity	Transport Package:	Wooden Boxes
Trademark:	Elite	Origin:	China
HS Code:	8483402090	Supply Ability:	100/Month
Application:	Motor, Motorcycle, Machinery, Agricultural Machinery	Function:	Change Drive Torque, Speed Changing, Speed Reduction
Hardness:	Hardened Tooth Surface	Installation:	Horizontal Type
Step:	Double-Step	Type:	Planetary Gear Box
Customization:	Available \| Customized Request

Product Description

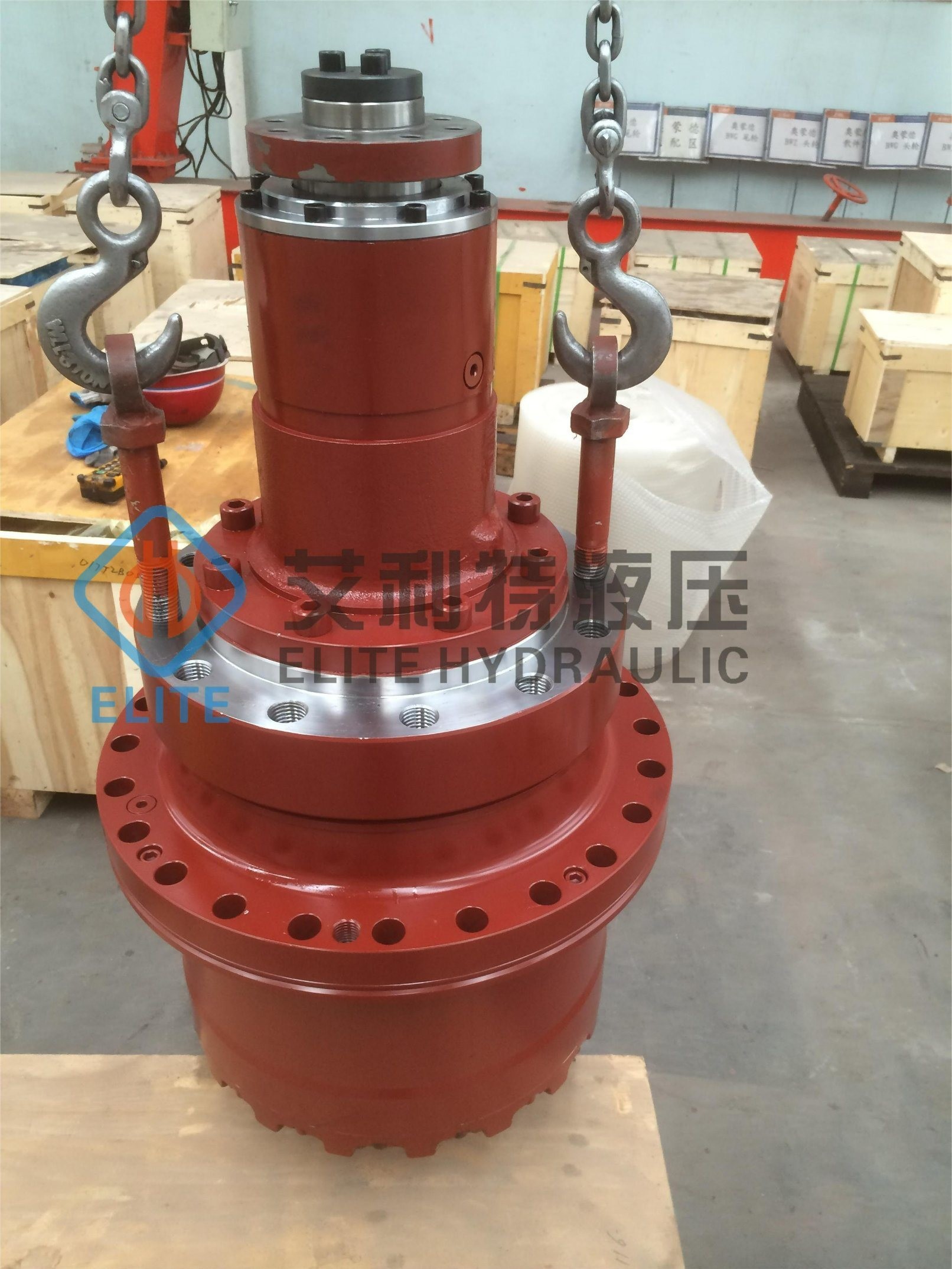

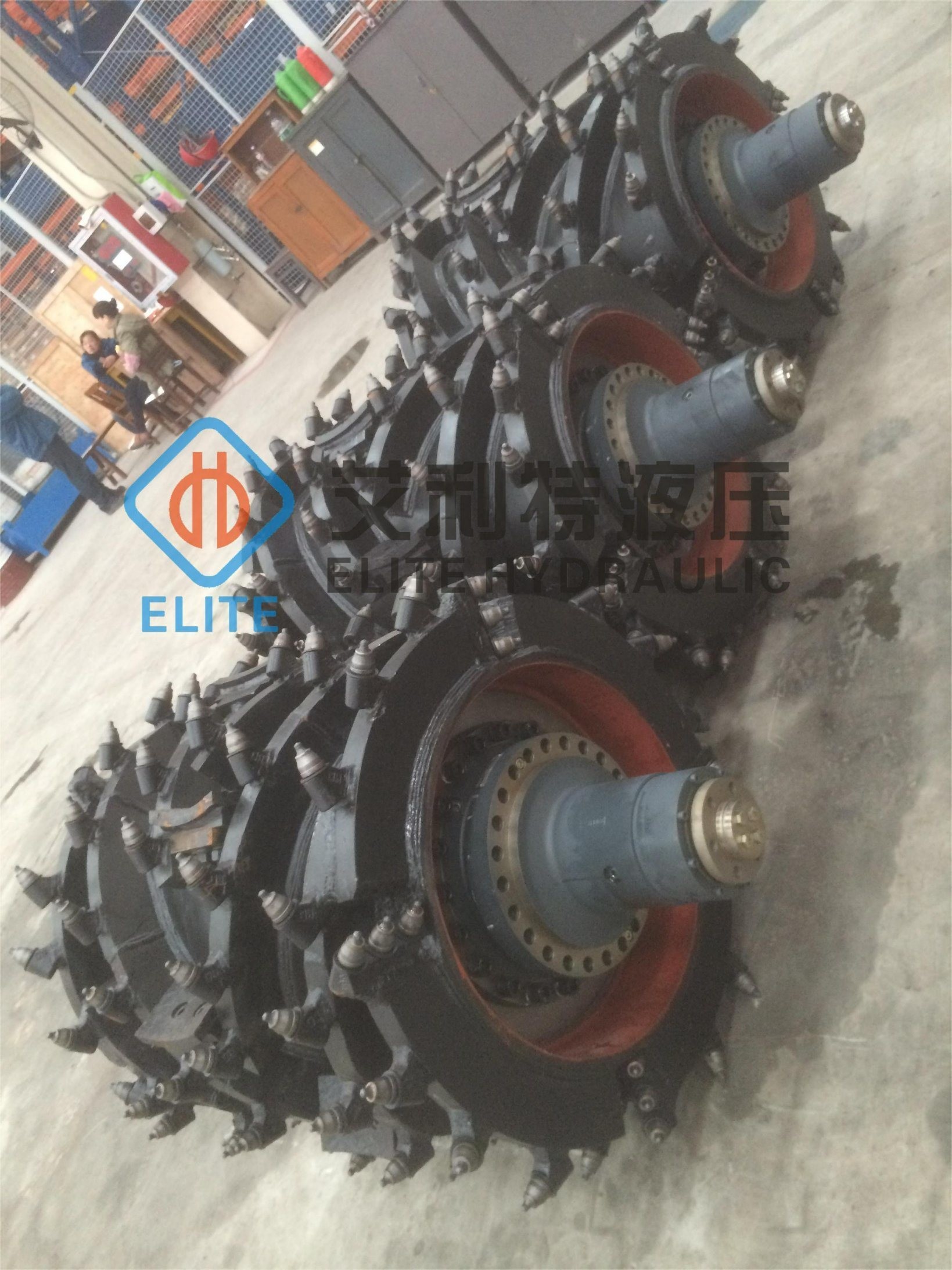

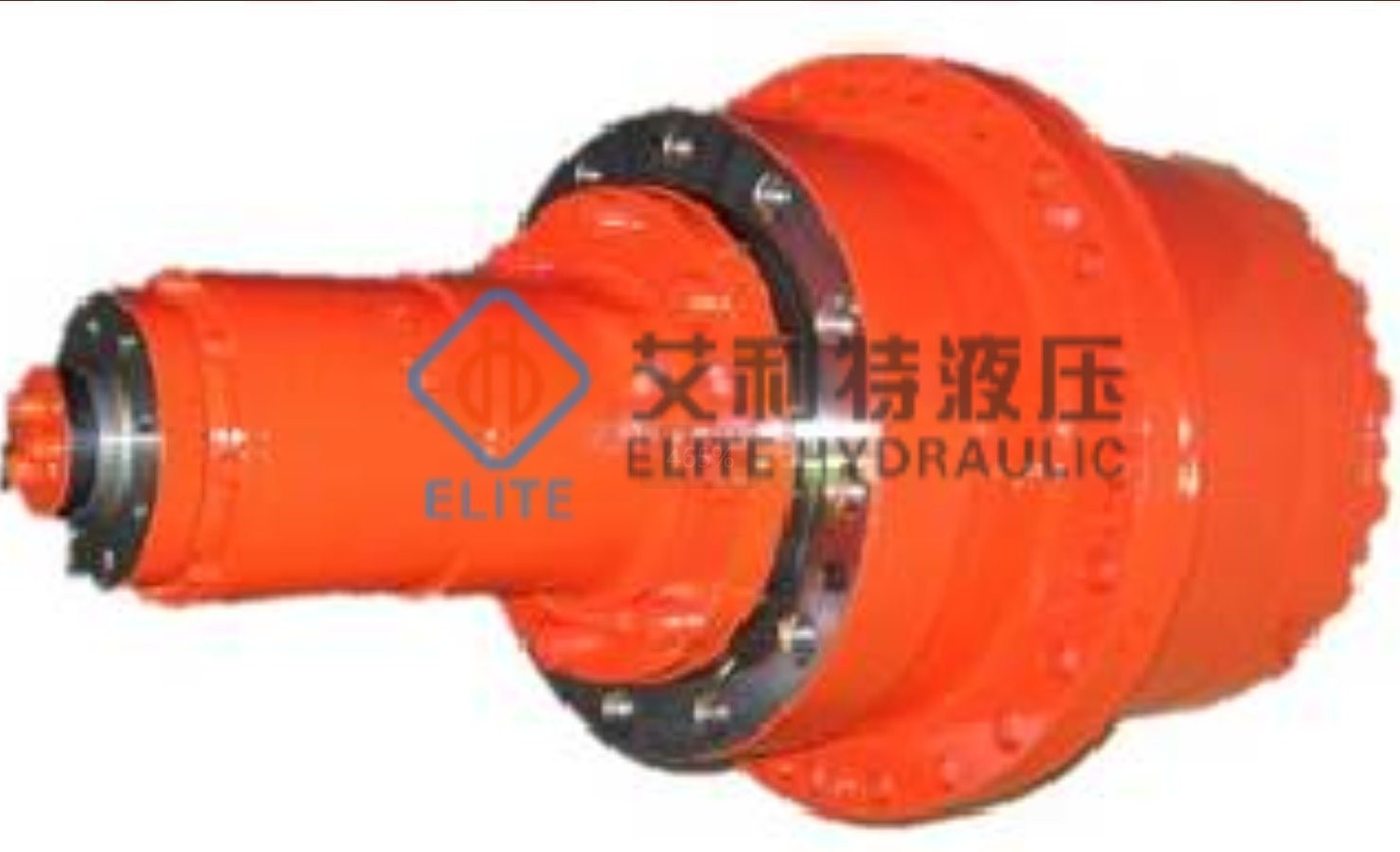

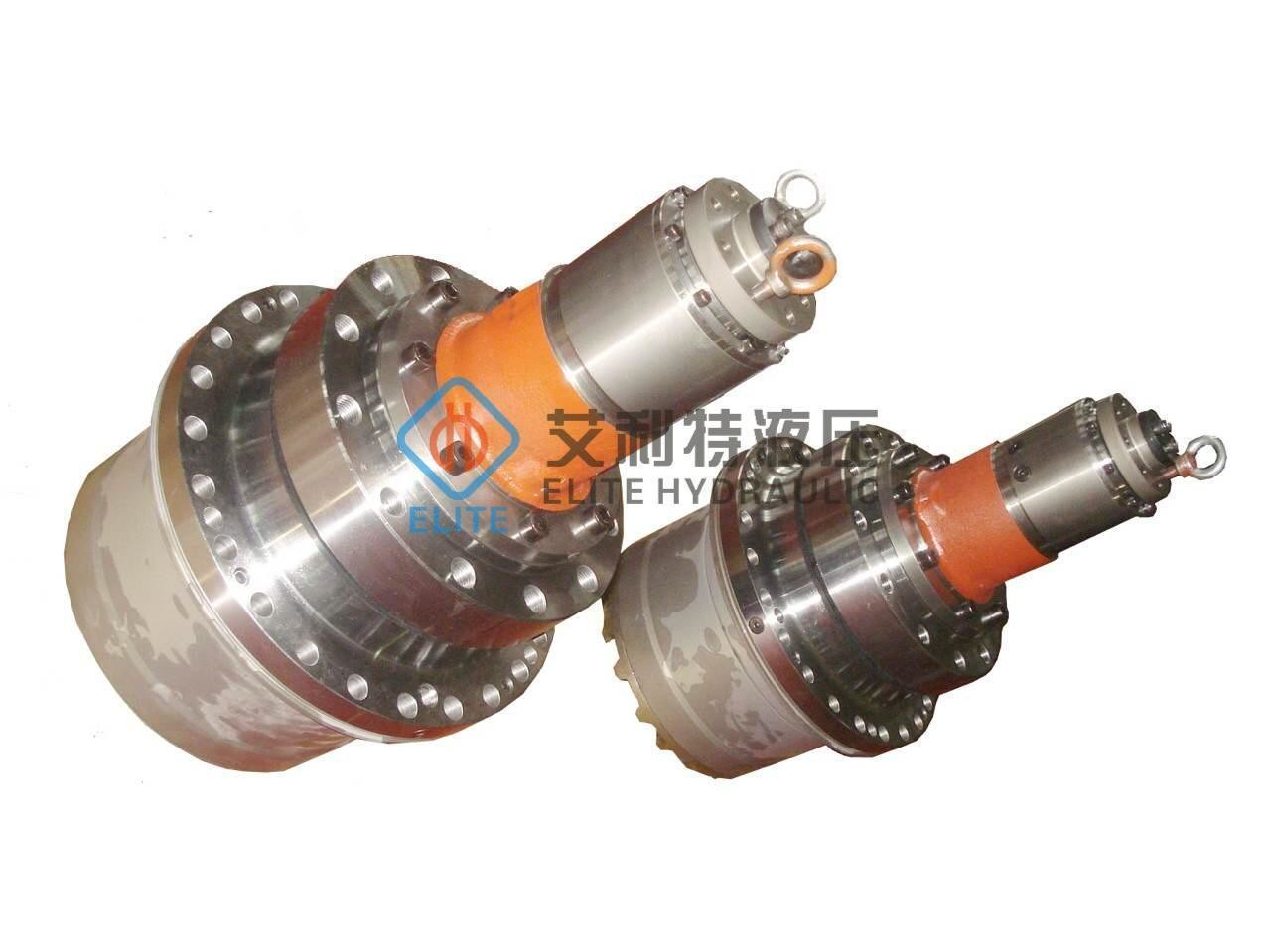

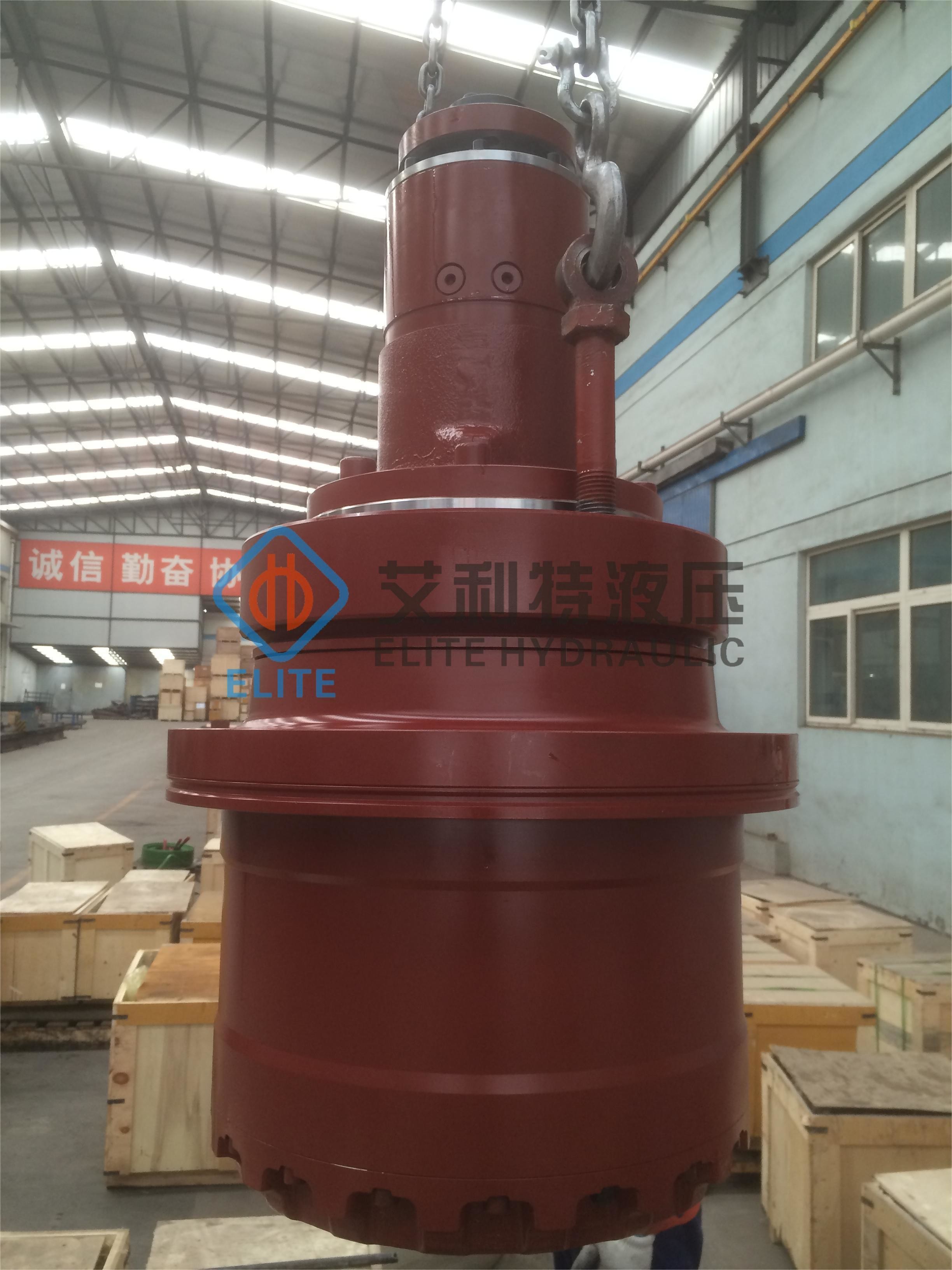

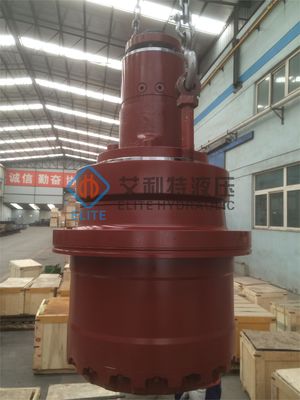

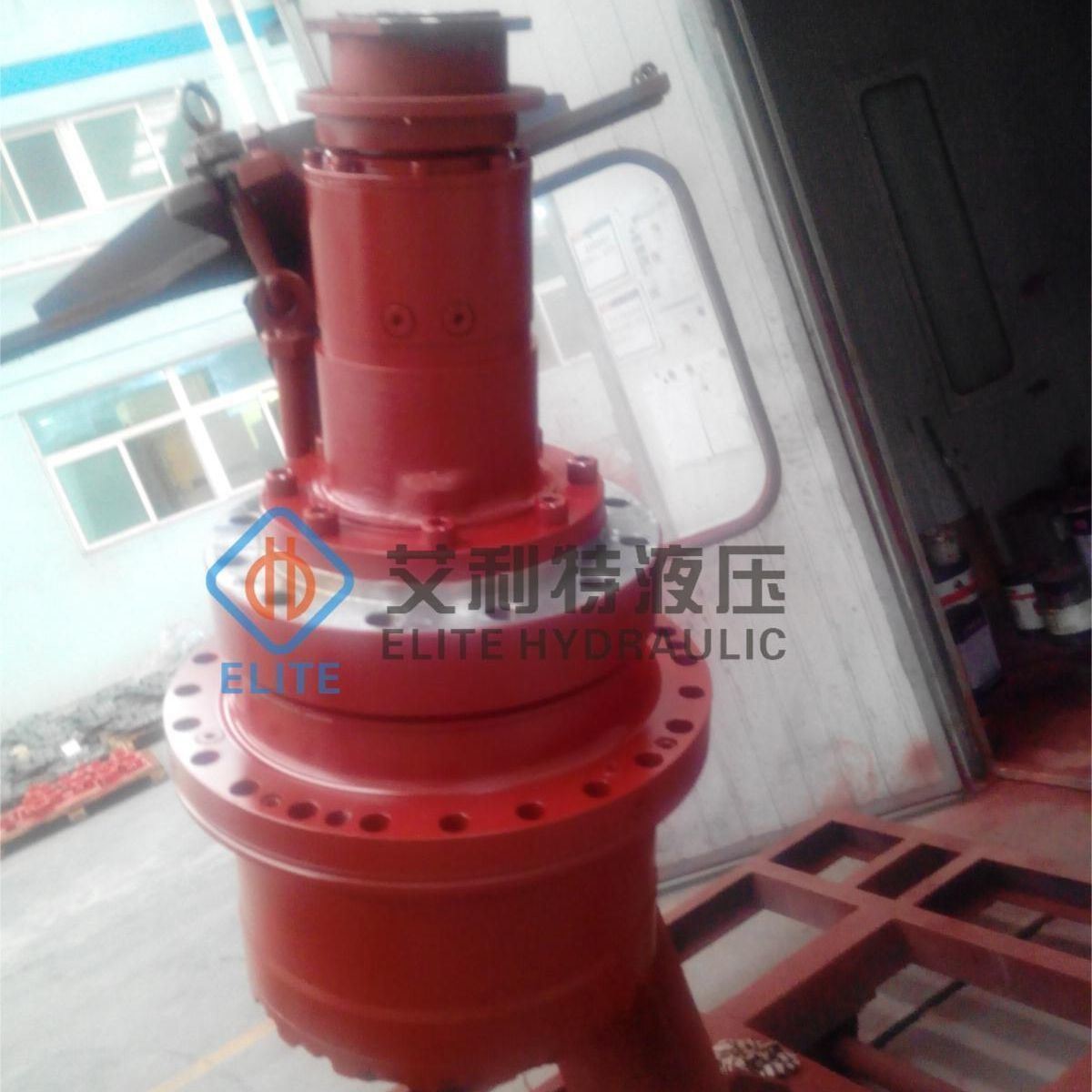

Dual stage planetary drive units with integrated pulley support, designed for cold planers, milling machines and surface mining machines with engine power from 80 to 1200kW and different rotor widths. The offset input option ensures higher machine productivity due to the increased cutting depth. The shiftable 2 speed solution allows two possible cutting speeds with huge benefits in terms of machine performance.
Bomag Supplier Cutter Drive O&K Antriebstechnik Fa130 Planetary Drum Transmission

Key features
Compact structure
High performance
Notchless ground tooth root
Different ratios
Integrated disc-brake
High availability by highest teeth and production quality
Suitable for various hydraulic motors

Specifications:

Model	HFT130D2
Max. output torque:	38000 N.m
Input speed	up to 3,500 rpm
Ratio:	17,19,21,23,28
Applicable motors:	mechanical input
Application:	cold planers, milling machines and surface mining machines cold planers, milling machines and surface mining machines

In conclusion, ELITE Hydraulic offers quality, value, and professional power transmission solutions that cater to a wide variety of industries. With their expertise, experience, and commitment to customer satisfaction, you can be sure that you're in safe hands when working with them. Whether you need travel gearbox, electrical drive, travel drive,slew gearbox,winche gearbox,cutter gearbox,truck mixer gearbox,twin shaft mixer or other hydraulic transmission solutions, you can trust ELITE Hydraulic to provide you with the best possible solutions. Contact them today to learn more about their power transmission products and services.
