Detail Information

Model NO.:	HFTB02000	Custom:	Customized Design
Brand:	Elite/OEM	Ratio:	Different Ratios
Brakes:	Multiple Disc Brakes	Load Capacity:	Higher Load Capacity
Assembly:	Easy Assembly	Transport Package:	Wooden Boxes
Trademark:	Elite	Origin:	China
HS Code:	8483402090	Supply Ability:	2200/Month
Application:	Motor, Motorcycle, Machinery, Agricultural Machinery	Function:	Change Drive Torque, Speed Changing, Speed Reduction
Hardness:	Hardened Tooth Surface	Type:	None
Warranty:	18 Months	Output Torque:	Higher Output Torque
Customization:	Available \| Customized Request

Product Description

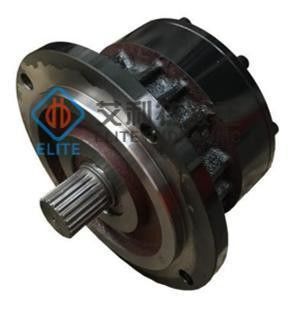

Elite Multiple Disc Brakes are fully enclosed units that use coil springs and multiple friction discs to produce braking torque. Thesebrakes are applied by coil springs and released using hydraulic pressure. Maximum brake torque is achieved when hydraulic release pressure is zero. These brakes are self-applying in that any function which reduces hydraulic release pressure will begin to initiate brake clamping force.
These brakes are manufactured using high strength ductile iron housings with nitrile case and shaft seals to keep outside contaminants from entering the brake.
Spline shafts are constructed of heat-treated 8620 steel and available in a number of different configurations. Availablein SAE A, B, C or D mounts with torque ranges from 113 to
11000Nm and release pressures from 6.9 to 34.5 bar
Typical applications
include a parking brake function or braking of a motor on manlifts,
scissor lifts, winches, swing drives, and other low speed vehicles and equipment.

Specifications:

Model	HFTB02000
Static brake torque:	2000 N.m
Release pressure:	16-18bar
Max.pressure	50bar
Application:	include a parking brake function or braking of a motor on manlifts, scissor lifts, winches, swing drives, and other low speed vehicles and equipment.

In conclusion, ELITE Hydraulic offers quality, value, and professional power transmission solutions that cater to a wide variety of industries. With their expertise, experience, and commitment to customer satisfaction, you can be sure that you're in safe hands when working with them. Whether you need travel gearbox, electrical drive, travel drive,slew gearbox,winche gearbox,cutter gearbox,truck mixer gearbox,twin shaft mixer or other hydraulic transmission solutions, you can trust ELITE Hydraulic to provide you with the best possible solutions. Contact them today to learn more about their power transmission products and services.
