Detail Information

Model NO.:	R	Output Torque:	Higher Output Torque
Custom:	Customized Design	Brand:	Elite/OEM
Ratio:	Different Ratios	Brakes:	Multiple Disc Brakes
Load Capacity:	Higher Load Capacity	Assembly:	Easy Assembly
Transport Package:	Wooden Boxes	Trademark:	Elite
Origin:	China	HS Code:	8483402090
Supply Ability:	2200/Month	Application:	Motor, Motorcycle, Machinery, Agricultural Machinery
Function:	Change Drive Torque, Speed Changing, Speed Reduction	Hardness:	Hardened Tooth Surface
Step:	Four-Step	Type:	Planetary Gear Box
Warranty:	18months	Customization:	Available \| Customized Request

Product Description

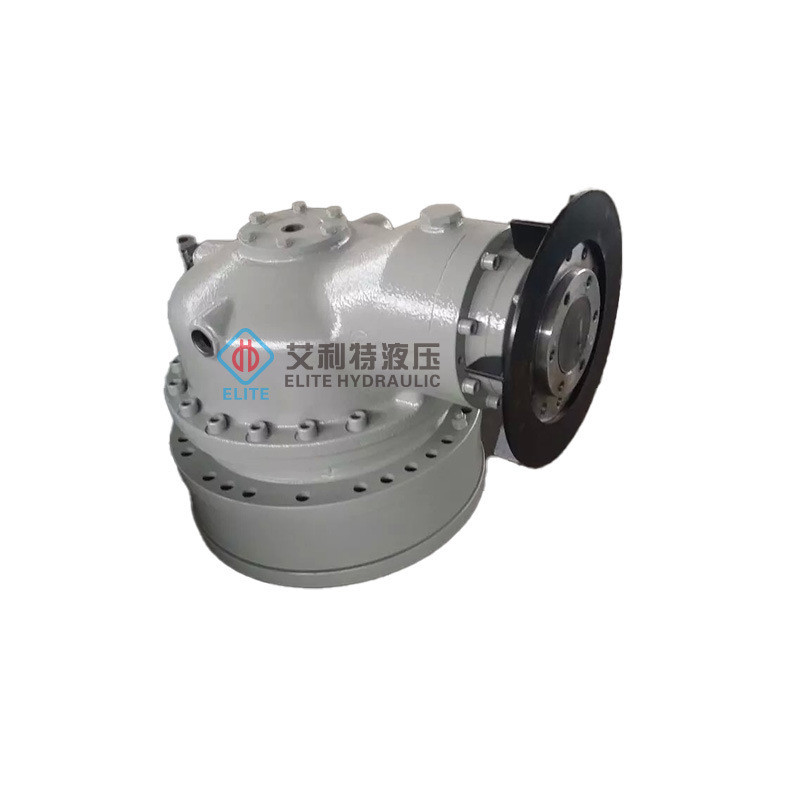

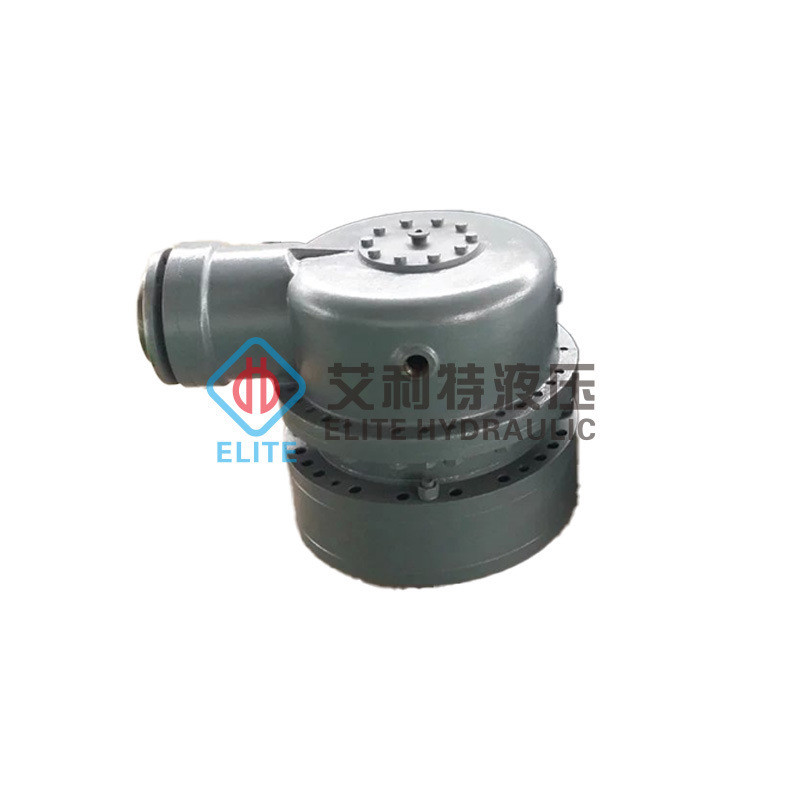

R series gearbox is an effective synchronous driving device pecially designed for twin-shaft Mixer and is manufactured by adopting Germany advanced technology as well as heavy gearbox technical standard.Absolute dependability, low maintenance, compactness and cost-effectiveness are the key features of the redesigned R series, the unparalleled line of drives for twin shaft mixer . Ten models available for mixing capacity ranging from 0.5 to 9 m3.

Features:
Compact structure and space-saving design
Robust main bearing system
High torque capacity
High load capacity
Integrated static multiple disk parking brake
Optional Disconnect device for towing
Optional Quick disconnection device
Simple mounting
Easy oil change
Low-noise running operation
High Efficient Sicoma Twin Shaft Concrete Mixer Gearbox

Specifications:

Model	2*R306
Max. output torque:	8000 N.m
Input speed	up to 4,000 rpm
Ratio:	23.5
Brake options	Hydraulically released parking brake on request
Electric motor power	2*15KW
Mixer capacity:	0.5cub
Application:	Twin shaft mixer

In conclusion, ELITE Hydraulic offers quality, value, and professional power transmission solutions that cater to a wide variety of industries. With their expertise, experience, and commitment to customer satisfaction, you can be sure that you're in safe hands when working with them. Whether you need travel gearbox, electrical drive, travel drive,slew gearbox,winche gearbox,cutter gearbox,truck mixer gearbox,twin shaft mixer or other hydraulic transmission solutions, you can trust ELITE Hydraulic to provide you with the best possible solutions. Contact them today to learn more about their power transmission products and services.
