| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |
| Model NO.: | HFTA18D | Drill Hole Depth: | <100m |
|---|---|---|---|
| Bit Type: | Button Bit | Drilling Way: | Top Hammer |
| Shank Types: | T38 | Dimensions: | 1008*251*223mm |
| Flow Rate: | 75-92 L/Min | Drilling Diameter: | 38-64 Mm |
| Transport Package: | Wooden Boxes | Specification: | 1008*251*233 |
| Trademark: | Elite | Origin: | China |
| HS Code: | 84314320 | Supply Ability: | 1000/Month |
| After-sales Service: | 24h | Warranty: | 1 Year |
| Certification: | CE, ISO 9001:2008 | Condition: | New |
| Motor: | Hydraulic | Drill Hole Diameter: | <100mm |
| Customization: | Available | Customized Request |

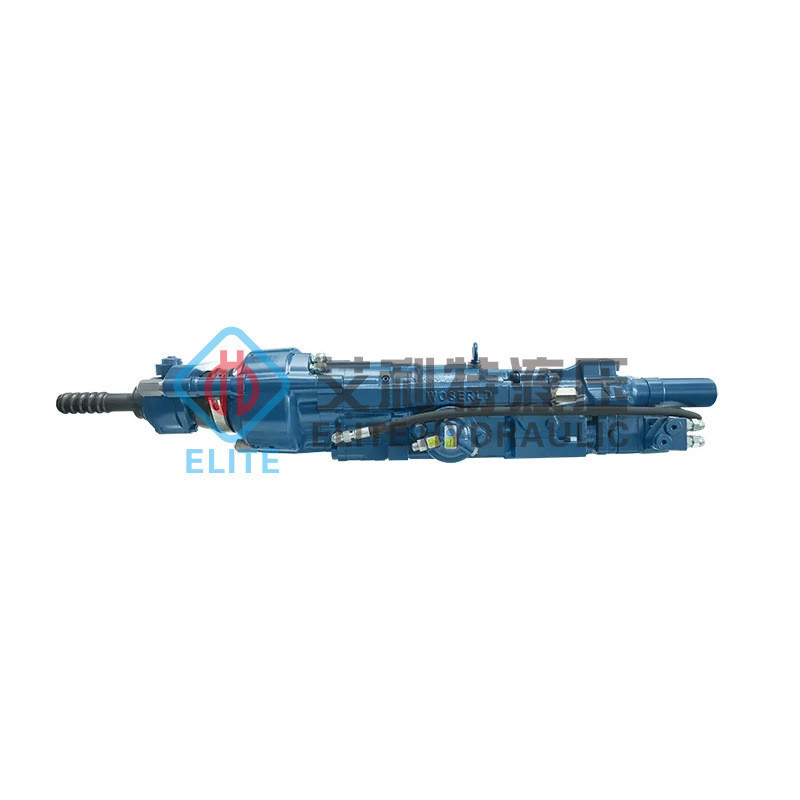

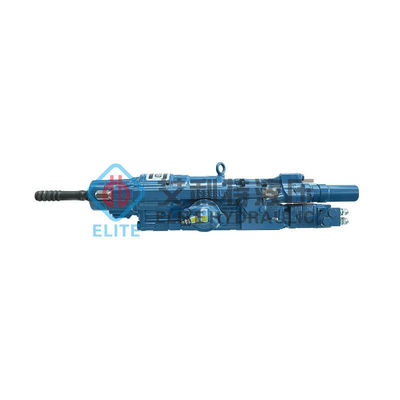

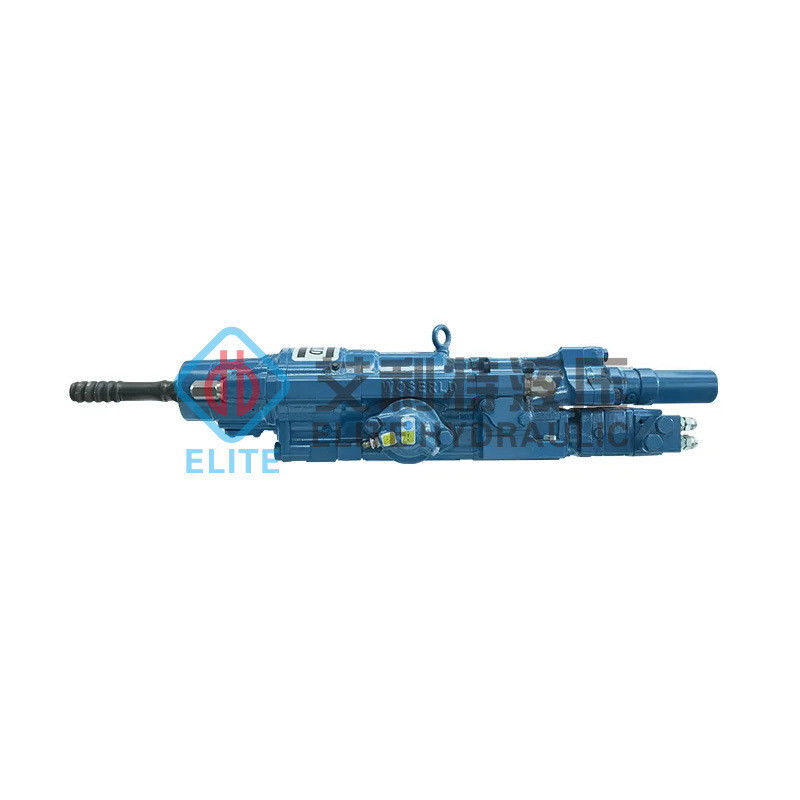

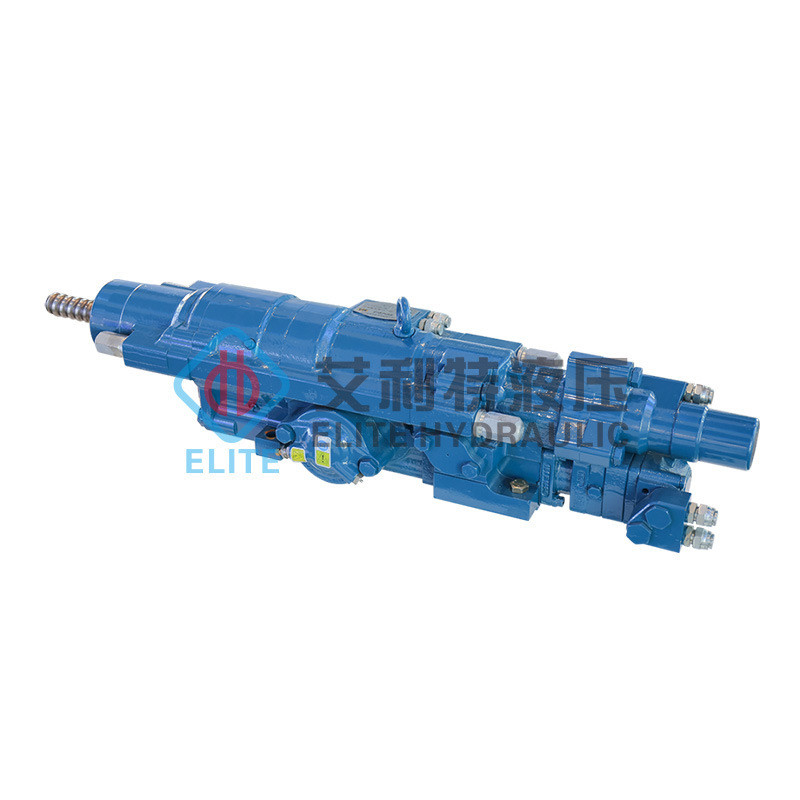

| HFTA18D+ Rock Drill | ||
| Structure | ||
| Dimension | mm*mm*mm | 1008X251X233 |
| Weight | KG | 175 |
| Center Height | mm | 88 |
| Shank | - | T38/R32/R38/SR38 |
| Hole Diameter | mm | φ38-64 |
| Impact Functions | ||
| Max. Impact Power | KW | 18 |
| Oil Inlet Pressure | Bar | 230 |
| Impact Frequency | HZ | 60 |
| Flow | L/min | 75-92 |
| Impact Energy | J | 300 |
| Rotation Functions | ||
| Displacement | CC | 80/100/125/160 |
| Rotation Speed | Rpm | 370/340/275/215 |
| Max. Torque | Nm | 440/640/820/1000 |
| Oil Inlet Pressure | Bar | 210 |
| Flow | L/min | 75 |
| Others | ||
| Water Pressure | Bar | 5-25 |
| Water Flow | L/min | 55-120 |
| Air Lubrication Pressure | Bar | 3 |
| Lubrication Air Flow | L/S | 5 |
