| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |
| Model NO.: | HA22L/D | Drill Hole Depth: | <100m |
|---|---|---|---|
| Bit Type: | Button Bit | Drilling Way: | Top Hammer |
| Shank Types: | T38/T45 | Dimensions: | 1008*251*223mm |
| Flow Rate: | 90 L/Min | Drilling Diameter: | 33-76 Mm |
| Power: | 22kw | Transport Package: | Wooden Boxes |
| Specification: | 1008*251*223mm | Trademark: | Elite |
| Origin: | China | HS Code: | 84314320 |
| Supply Ability: | 1000/Month | After-sales Service: | 24h |
| Warranty: | 1 Year | Certification: | CE, ISO 9001:2008 |
| Condition: | New | Motor: | Hydraulic |
| Drill Hole Diameter: | <100mm | Customization: | Available | Customized Request |

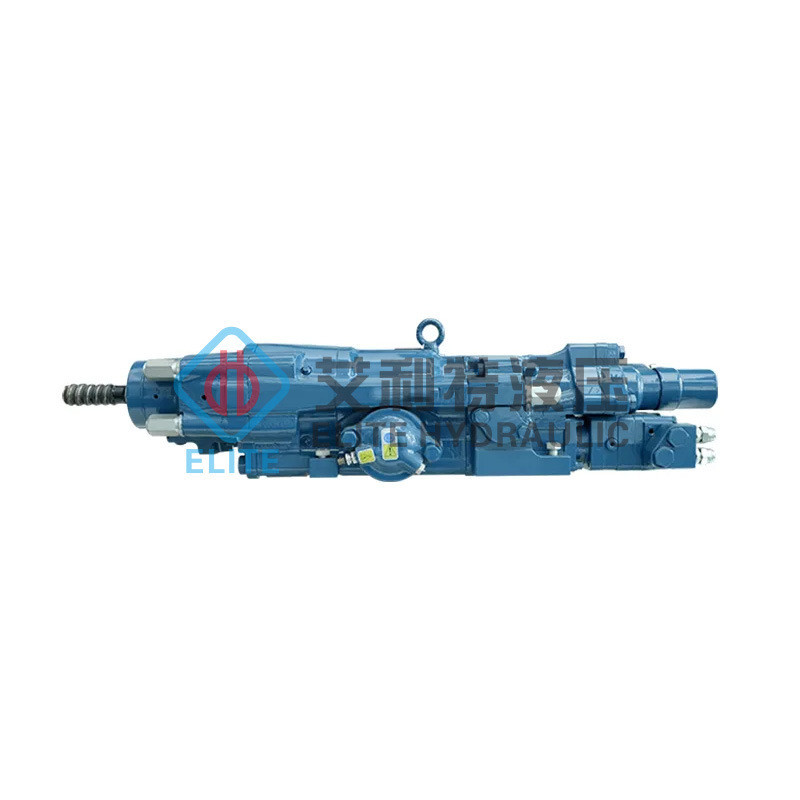

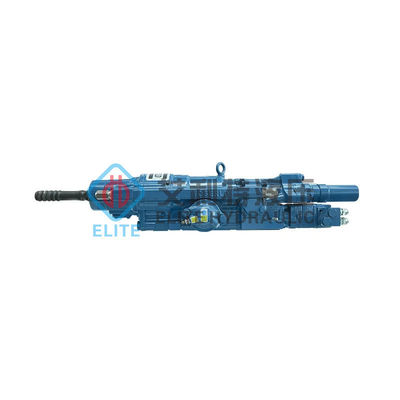

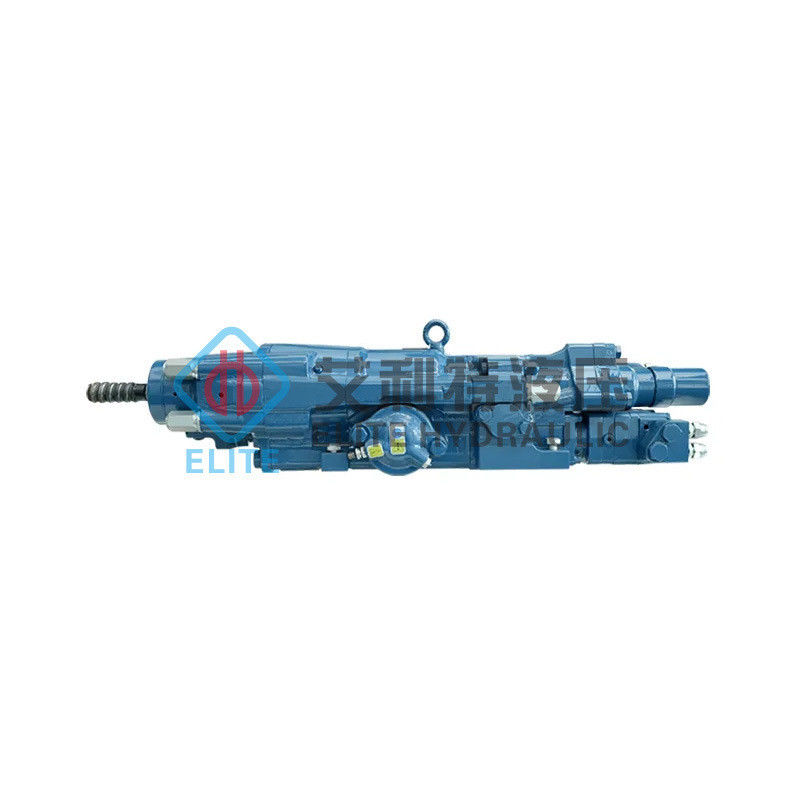

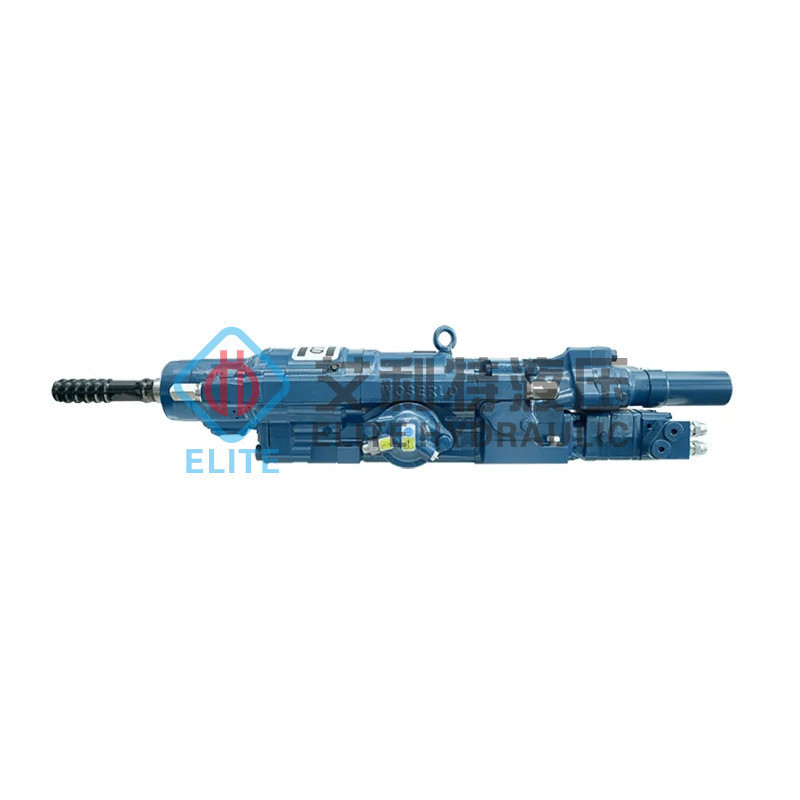

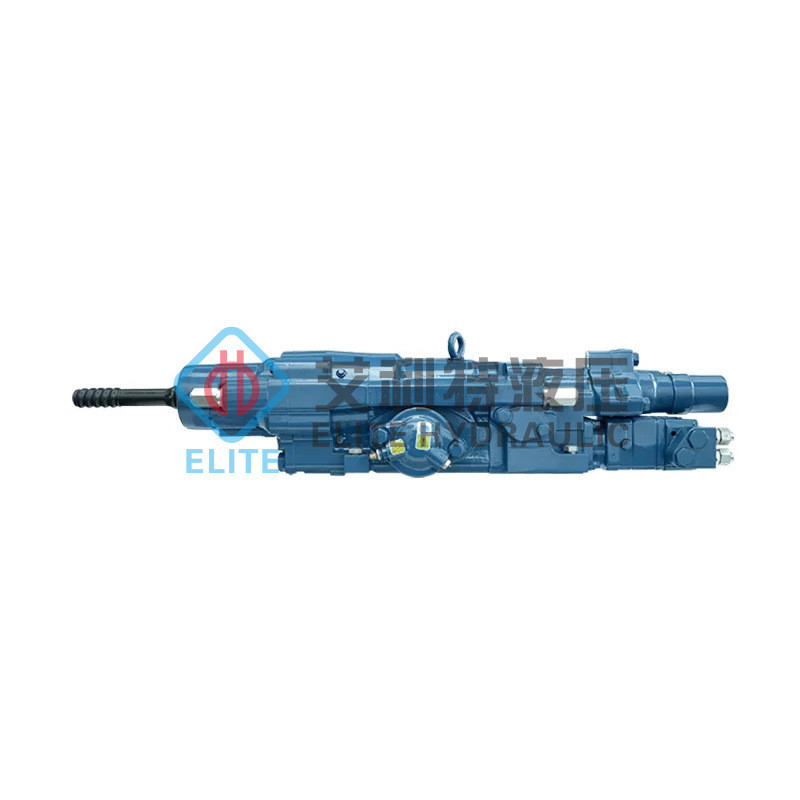

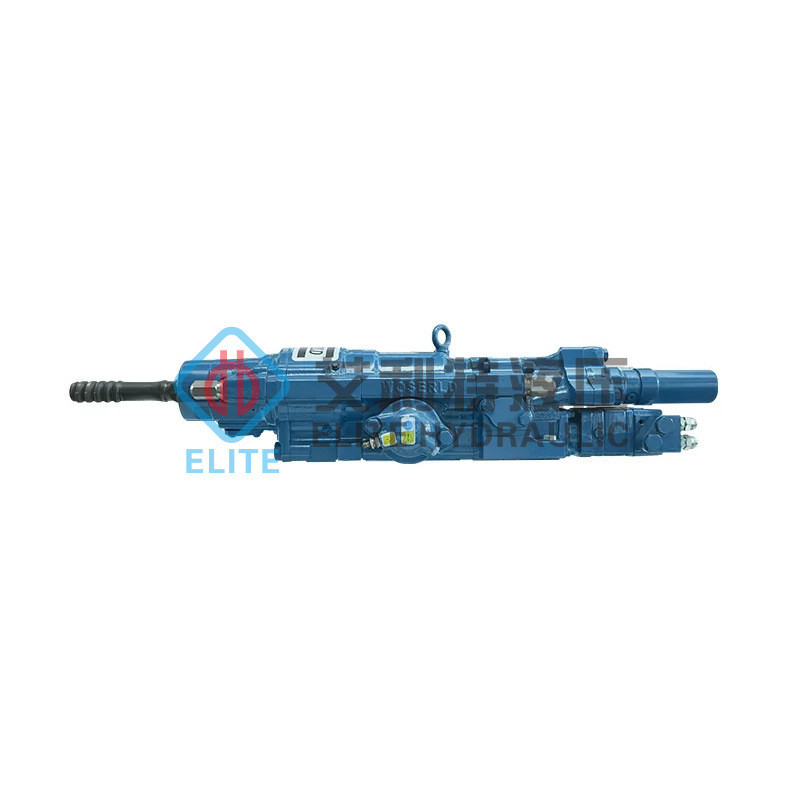

| HA22L/D (YYG-22/1550) Rock Drill | ||
| Structure | ||
| Dimension (include shank) | mm*mm*mm | 1008X292X233 |
| Weight | KG | 180 |
| Center Height | mm | 88 |
| Shank | - | T38E/T45E |
| Hole Diameter | mm | 64-102 |
| Impact Functions | ||
| Max. Impact Power | KW | 22 |
| Oil Inlet Pressure | Bar | 220 |
| Impact Frequency | HZ | 53 |
| Flow | L/min | 105 |
| Impact Energy | J | 400 |
| Rotation Functions | ||
| Displacement | CC | 160/250 |
| Rotation Speed | Rpm | 0-215/0-135 |
| Max. Torque | Nm | 1000/1550 |
| Oil Inlet Pressure | Bar | 210/200 |
| Flow | L/min | 75 |
| Others | ||
| Water Pressure | Bar | 8-25 |
| Water Flow | L/min | 40-120 |
| Air Lubrication Pressure | Bar | 3 |
| Lubrication Air Flow | L/S | 7 |
