| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |
| Model NO.: | HS14B/D | Drill Hole Depth: | <100m |
|---|---|---|---|
| Bit Type: | Button Bit | Drilling Way: | Top Hammer |
| Shank Types: | R32f/R32/T38 | Dimensions: | 574X323.5X180 |
| Flow Rate: | 90 L/Min | Drilling Diameter: | 33-51mm |
| Power: | 14kw | Weight: | 127kg |
| Transport Package: | Wooden Boxes | Specification: | 574X323.5X180 |
| Trademark: | Elite | Origin: | China |
| HS Code: | 84314320 | Supply Ability: | 1000/Month |
| After-sales Service: | 24h | Warranty: | 1 Year |
| Certification: | CE, ISO 9001:2008 | Condition: | New |
| Motor: | Hydraulic | Drill Hole Diameter: | <100mm |
| Customization: | Available | Customized Request |

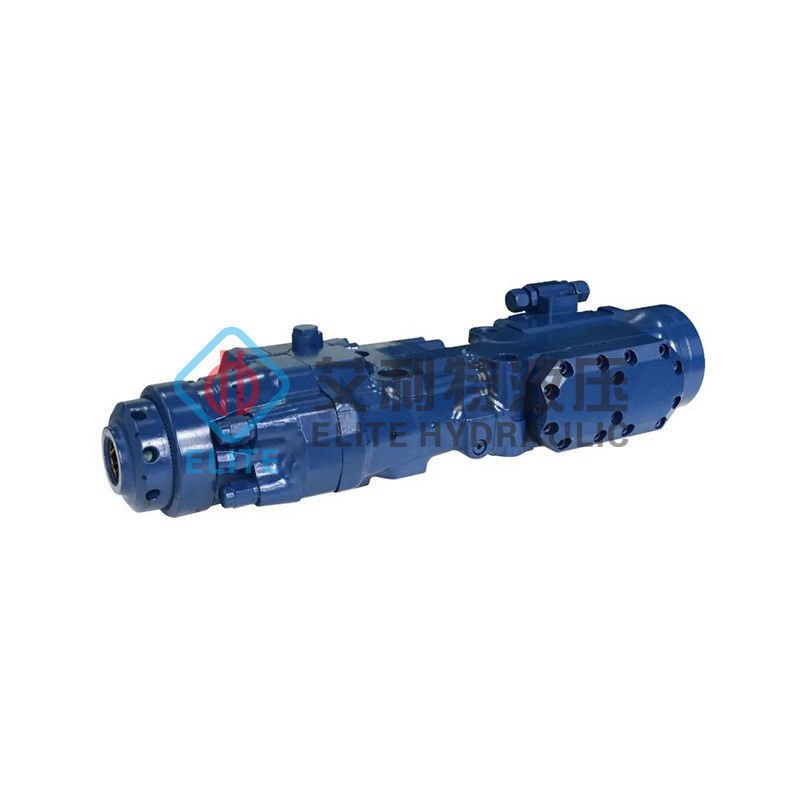

| HS14B/D Rock Drill | ||
| Structure | ||
| Dimension | mm*mm*mm | 574X323.5X180 |
| Weight | KG | 127 |
| Center Height | mm | 90 |
| Shank | - | R32F/R32/T38 |
| Hole Diameter | mm | 33-51 |
| Impact Functions | ||
| Max. Impact Power | KW | 14 |
| Oil Inlet Pressure | Bar | 180 |
| Impact Frequency | HZ | 110 |
| Flow | L/min | 90 |
| Impact Energy | J | 127 |
| Rotation Functions | ||
| Displacement | CC | 100/125 |
| Rotation Speed | Rpm | 550-440 |
| Max. Torque | Nm | 340-420 |
| Oil Inlet Pressure | Bar | 175 |
| Flow | L/min | 75 |
| Others | ||
| Water Pressure | Bar | 10-15 |
