Detail Information

Model NO.:	HFTE001	Warranty:	18 Months
Brakes:	Multiple Disc Brakes	Ratio:	Different Ratios
Custom:	Customized Design	Output Torque:	Higher Output Torque
Load Capacity:	Higher Load Capacity	Delivery:	Fast Delivery
Assembly:	Easy Assembly	Transport Package:	Wooden Boxes
Trademark:	Elite	Origin:	China
HS Code:	8483402090	Supply Ability:	2000/Month
Application:	Motor, Motorcycle, Machinery, Agricultural Machinery	Function:	Change Drive Torque, Speed Changing, Speed Reduction
Hardness:	Hardened Tooth Surface	Installation:	Horizontal Type
Step:	Three-Step	Type:	Planetary Gear Box
Customization:	Available \| Customized Request

Product Description

Product description
1.Overview
The electric drive series tonnage machine is an ideal driving tonnage device for various types of equipment or machinery. It can achieve large tonnage ratio and large tonnage output, and is widely evaluated in various types of engineering machinery, mining machinery, shipbuilding machinery, construction machinery and other industries. The structure is compact and can be used in places with relatively narrow installation space. This production machine adopts internationally advanced transmission technology, design experience, processing technology and heat treatment technology to ensure the high load-bearing capacity and operational reliability of the production machine. Therefore, the designed production machine not only complies with the Bonfiglioli series standards, but can also be customized according to customer requirements. According to the specific requirements, we design and provide alternative products to foreign mainstream brands.
2.Structural features
Combined with the principle of 2K-H, it adopts 1-stage, 2-stage or multi-stage combined cantilever structure, which is compact in structure, strong bearings can support part of the external weight, easy to install and easy to use.
3 .seal
Adopting an internationally advanced dynamic sealing structure, it can prevent lubricating oil from leaking out and the entry of external substances and moisture even under extreme use conditions
4.Lubrication
This series of products is supplied without lubricating oil. When users use it, they need to add lubricating oil to the specified oil level. The gears and bearings are lubricated with oil. In addition to regular oil changes, the reducer does not require
Maintenance. Change the oil for the first time after the reducer is used for 150 hours for the first time. After that, change the lubricating oil every 1000 hours. Change the lubricating oil at least once a year. When changing the lubricating oil, you must
Keep it clean and do not allow impurities to be mixed in. It is recommended to use L-CKD 220 (40') closed industrial gear oil
5 .design variations
The models listed are standard series products, special designs can be provided according to user needs
6.Ambient operating temperature:
-40C to +90C. Under special circumstances, you need to communicate with our technical staff
Key features
Two- or three-stage planetary drive with reduction ratios of up to 1:153
Optimized gear design for maximum efficiency and minimum noise

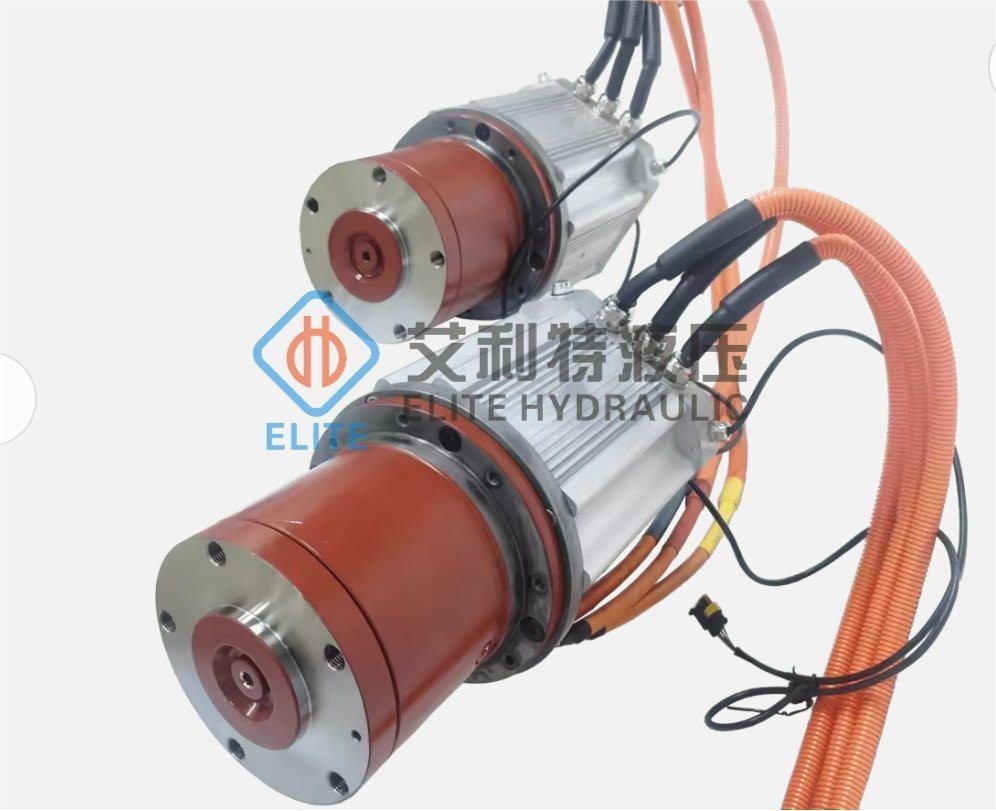

Integrated, low voltage, 3 phase induction motor with inverter
Integrated, high accuracy, KTY temperature sensor
High resolution, Hall effect speed sensor
Specifications:

Model	HFTE001T2
Max. output torque:	1200 N.m
Input speed	up to 6,000 rpm
Ratio:	22 51
Applicable motors:	Electrical motors(3.5KW)
Application:	Travel for Track, Chain and Wheel driving machines

Place of Origin:	China
Certification:	ISO 9001, ISO 14001, IATF16949

Minimum Order Quantity:	5
Packaging Details:	Wooden Boxes
Delivery Time:	Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Payment Terms:	LC, T/T, D/P, PayPal
Supply Ability:	90000 Pieces/Year
