| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |
| Model NO.: | HFTE Series | Output Torque: | Higher Output Torque |
|---|---|---|---|
| Design: | Customized Design | Brand: | Elite/OEM |
| Ratio: | Different Ratios | Load Capacity: | Higher Load Capacity |
| Ground Tooth: | Notchless Ground Tooth Root | Assembly: | Easy Assembly |
| Transport Package: | Wooden Boxes | Trademark: | Elite |
| Origin: | China | HS Code: | 8483402090 |
| Supply Ability: | 2000/Month | Application: | Motor, Motorcycle, Machinery, Agricultural Machinery |
| Function: | Change Drive Torque, Speed Changing, Speed Reduction | Hardness: | Hardened Tooth Surface |
| Step: | Three-Step | Type: | Planetary Gear Box |
| Warranty: | 18 Months | Customization: | Available | Customized Request |
| 1 | Structural features | Combined with the principle of 2K-H, it adopts 1-stage, 2-stage or multi-stage combined cantilever structure, which is compact in structure, strong bearings can support part of the external weight, easy to install and easy to use. |

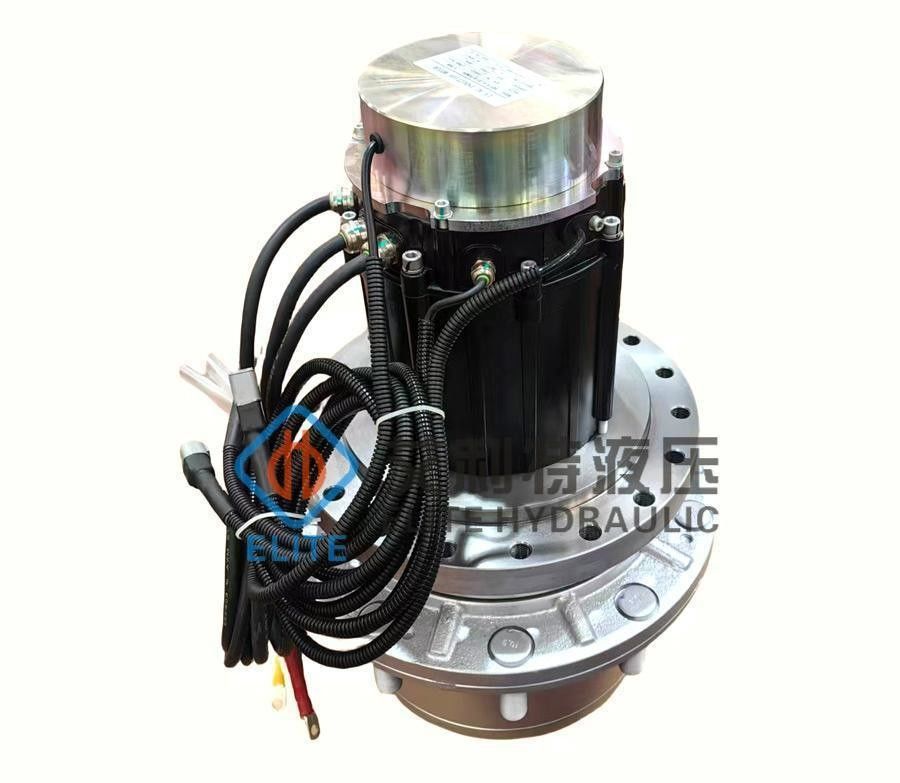

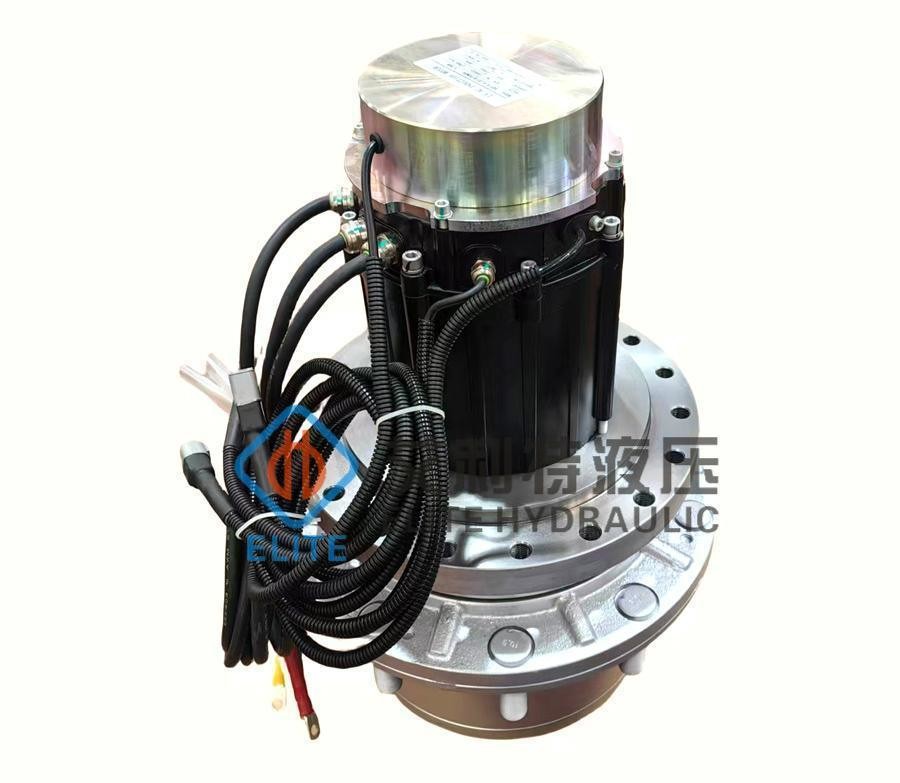

| 2 | Key features | Two- or three-stage planetary drive with reduction ratios of up to 1:153 Optimized gear design for maximum efficiency and minimum noise Integrated, low voltage, 3 phase induction motor with inverter Integrated, high accuracy, KTY temperature sensor High resolution, Hall effect speed sensor |
| 3 | seal | Adopting an internationally advanced dynamic sealing structure, it can prevent lubricating oil from leaking out and the entry of external substances and moisture even under extreme use conditions |
| 4 | Lubrication | This series of products is supplied without lubricating oil. When users use it, they need to add lubricating oil to the specified oil level. The gears and bearings are lubricated with oil. In addition to regular oil changes, the reducer does not require Maintenance. Change the oil for the first time after the reducer is used for 150 hours for the first time. After that, change the lubricating oil every 1000 hours. Change the lubricating oil at least once a year. When changing the lubricating oil, you must Keep it clean and do not allow impurities to be mixed in. It is recommended to use L-CKD 220 (40') closed industrial gear oil |
| 5 | design variations | The models listed are standard series products, special designs can be provided according to user needs |
| 6 | Ambient operating temperature | -40C to +90C. Under special circumstances, you need to communicate with our technical staff |
