Detail Information

Model NO.:	HFTE001T2	Warranty:	18 Months
Output Torque:	Higher Output Torque	Custom:	Customized Design
Brand:	Elite/OEM	Ratio:	Different Ratios
Brakes:	Multiple Disc Brakes	Load Capacity:	Higher Load Capacity
Transport Package:	Wooden Boxes	Trademark:	Elite
Origin:	China	HS Code:	8483402090
Supply Ability:	2000/Month	Application:	Motor, Motorcycle, Machinery, Agricultural Machinery
Function:	Change Drive Torque, Speed Changing, Speed Reduction	Hardness:	Hardened Tooth Surface
Installation:	Horizontal Type	Step:	Double-Step
Type:	Planetary Gear Box	Customization:	Available \| Customized Request

Product Description

Elite HFTE planetary drives incorporate an integrated, maintenance-free electric motor and offer significant benefits, including compact dimensions, low noise and high efficiency. HFTE Series drives are designed for use with all kinds of aerial platforms and other types of mobile machinery, for indoor and outdoor use. This advanced powertrain solution uses a two- or three-stage gearbox offering reduction ratios of up to 1:153 to satisfy the widest possible range of needs. The gearbox is coupled with a low-voltage induction motor (BT Series), specially developed for traction power and control applications.
Key features
Two- or three-stage planetary drive with reduction ratios of up to 1:153
Optimized gear design for maximum efficiency and minimum noise
Integrated, low voltage, 3 phase induction motor with inverter
Integrated, high accuracy, KTY temperature sensor
High resolution, Hall effect speed sensor
Specifications:

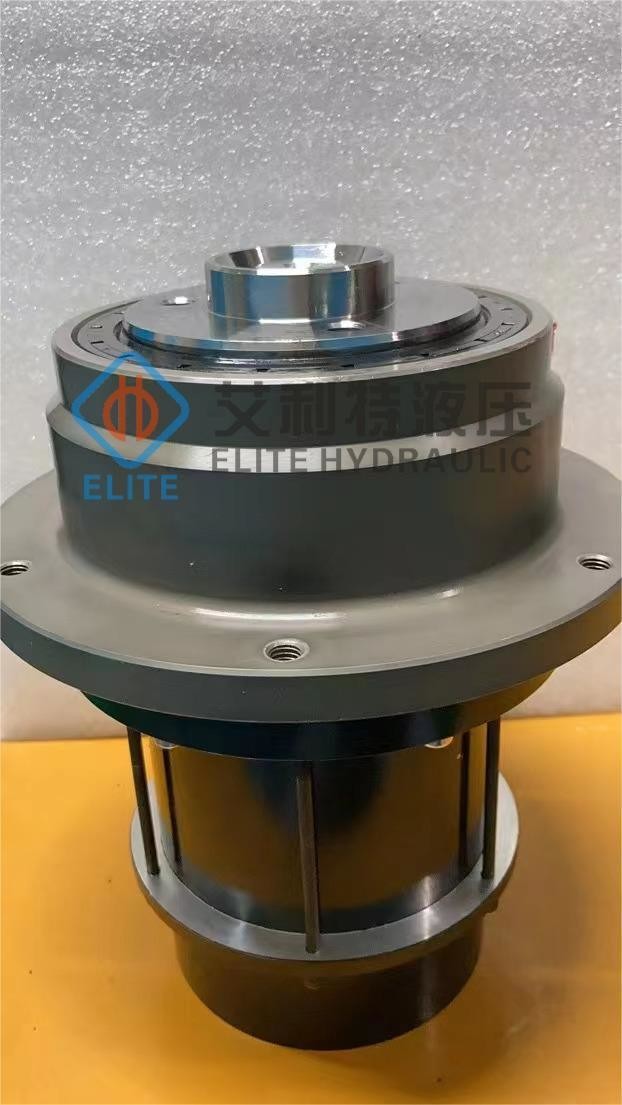

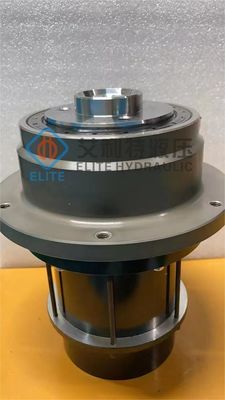

HFTE001 series Wheel Hub is a planetary gearbox.

The structure is designed to work with the standard Hydraulic Motors and Electric Motors.

It is widely used in mobile machinery for wheel drive application

Model	HFTE001T2
Max. output torque:	1200 N.m
Input speed	up to 6,000 rpm
Ratio:	51
Applicable motors:	Electrical motors
Application:	Travel for Track, Chain and Wheel driving machines

Frame orienting diameter	171.4mm
Frame flange bolt	8-M10
Frame flange P.C.D.	190.4mm
Sprocket orienting diameter	184mm
Sprocket flange bolt	5-M12
Sprocket flange P.C.D.	216mm
Flange distance	148mm
Approximate weigth	20kg

In conclusion, ELITE Hydraulic offers quality, value, and professional power transmission solutions that cater to a wide variety of industries. With their expertise, experience, and commitment to customer satisfaction, you can be sure that you're in safe hands when working with them. Whether you need travel gearbox, electrical drive, travel drive,slew gearbox,winche gearbox,cutter gearbox,truck mixer gearbox,twin shaft mixer or other hydraulic transmission solutions, you can trust ELITE Hydraulic to provide you with the best possible solutions. Contact them today to learn more about their power transmission products and services.

Place of Origin:	China
Certification:	ISO 9001, ISO 14001, IATF16949

Minimum Order Quantity:	5
Packaging Details:	Wooden Boxes
Delivery Time:	Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays
Payment Terms:	LC, T/T, D/P, PayPal
Supply Ability:	90000 Pieces/Year
