| Place of Origin: | China |
|---|---|
| Certification: | ISO 9001, ISO 14001, IATF16949 |
| Minimum Order Quantity: | 5 |
| Packaging Details: | Wooden Boxes |
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal |
| Supply Ability: | 90000 Pieces/Year |
| Model NO.: | HFT01E | Output Torque: | Higher Output Torque |
|---|---|---|---|
| Custom: | Customized Design | Brand: | Elite/OEM |
| Ratio: | Different Ratios | Brakes: | Multiple Disc Brakes |
| Load Capacity: | Higher Load Capacity | Assembly: | Easy Assembly |
| Transport Package: | Wooden Boxes | Trademark: | Elite |
| Origin: | China | HS Code: | 8483402090 |
| Supply Ability: | 2000/Month | Application: | Motor, Motorcycle, Machinery, Agricultural Machinery |
| Function: | Change Drive Torque, Speed Changing, Speed Reduction | Hardness: | Hardened Tooth Surface |
| Installation: | Horizontal Type | Step: | Double-Step |
| Type: | Planetary Gear Box | Customization: | Available | Customized Request |

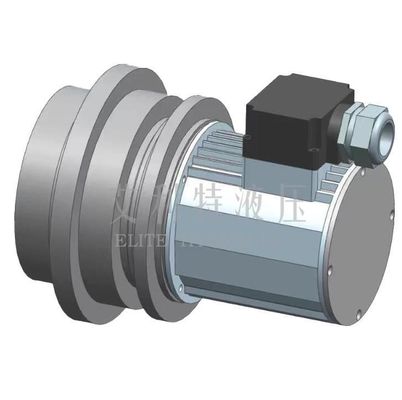

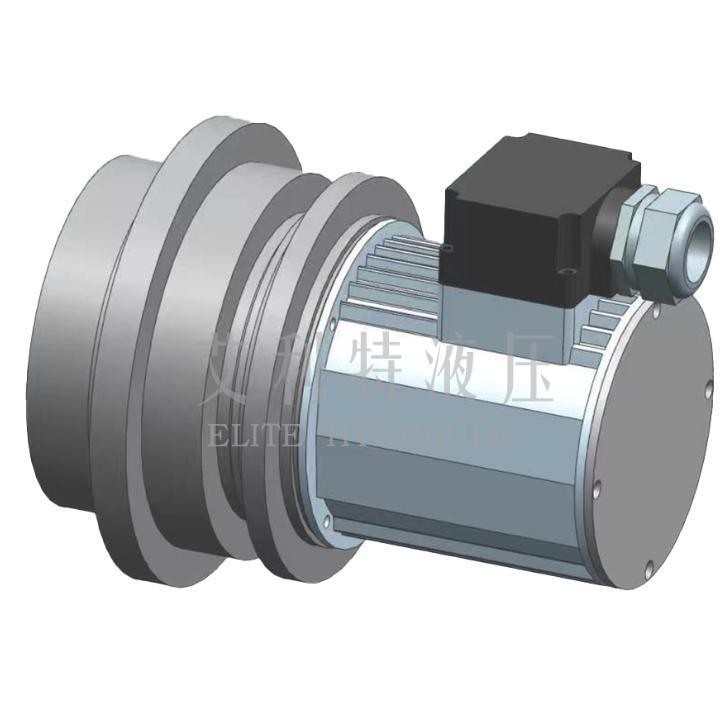

HFTE001 series Wheel Hub is a planetary gearbox.
| Model | HFTE001T2 |
| Max. output torque: | 1200 N.m |
| Input speed | up to 6,000 rpm |
| Ratio: | 51 |
| Applicable motors: | Electrical motors |
| Application: | Travel for Track, Chain and Wheel driving machines |
| Frame orienting diameter | 171.4mm |
| Frame flange bolt | 8-M10 |
| Frame flange P.C.D. | 190.4mm |
| Sprocket orienting diameter | 184mm |
| Sprocket flange bolt | 5-M12 |
| Sprocket flange P.C.D. | 216mm |
| Flange distance | 148mm |
| Approximate weigth | 20kg |
